KE30

Toyota COROLLA · 1974 · 5,887 parts · 193 categories
KE30 ×

← Back to categories

5,887 items

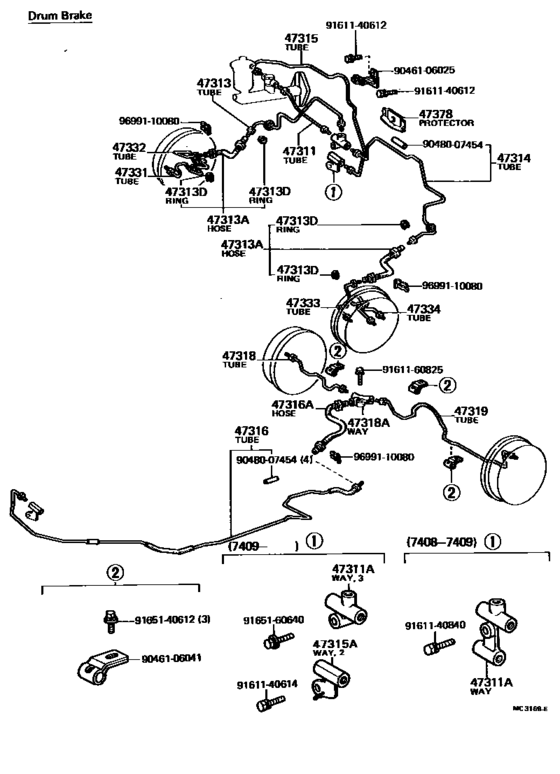

Brake Tube & Clamp ([08.1974 - 07.1978] (7408-7807)KE30..RHD..GEN ; (7408-7807)KE36..RHD ..GEN,SA ; (7807- )KE30,36..RHD. .GEN) 53
#OEMPart name
47311 47311-12210 Tube, Front Brake, No.1
47311 47311-12270 Tube, Front Brake, No.1
47311 90413-10002 Way(For Front Brake Tube)
47311 90413-10138 Way(For Front Brake Tube)
47311 90415-10012 Way(For Front Brake Tube)
47313 47313-12080 Tube, Front Brake, No.3
47313 47313-12090 Tube, Front Brake, No.3
47313 90947-02122 Hose, Flexible, No.1(For Front)
47313 96950-32857 Hose, Flexible, No.1(for Front)
47313 90947-02233 Hose, Flexible, No.1(For Front)
47313 96950-32854 Hose, Flexible, No.1(For Front)
47313 96160-01200 Ring, E(For Clutch Release Cable)
47314 47314-12080 Tube, Front Brake, No.4
47315 47315-12160 Tube, Front Brake, No.5
47315 47315-12161 Tube, Front Brake, No.5
47315 47315-12190 Tube, Front Brake, No.5
47315 90412-10001 Way, No.1(For Rear Brake Tube)
47316 47316-12140 Tube, Front Brake, No.6
47316 47316-12150 Tube, Front Brake, No.6
47316 47316-12141 Tube, Front Brake, No.6
47316 47316-12151 Tube, Front Brake, No.6
47316 96940-31303 Hose, Clutch, No.1 - FLEXIBLE(FOR REAR BRAKE TUBE)
47316 96940-33005 Hose, Clutch, No.1
47318 47318-12090 Tube, Front Brake, No.8
47318 47318-12120 Tube, Front Brake, No.8
47318 47318-12091 Tube, Front Brake, No.8
47318 47318-12121 Tube, Front Brake, No.8
47318 90413-10029 Way, No.2(For Rear Brake Tube)
47318 90413-10139 Way(For Rear Rh Brake Tube)
47319 47319-12090 Tube, Front Brake, No.9
47319 47319-12120 Tube, Front Brake, No.9
47319 47319-12091 Tube, Front Brake, No.9
47319 47319-12121 Tube, Front Brake, No.9
47331 47331-12020 Tube, Rear Brake, No.10
47332 47332-12040 Tube, Rear Brake, No.11
47334 47334-12030 Tube, Rear Brake, No.13
47378 47378-12030 Protector, Brake Tube
9046106025 90461-06025 New Genuine Part
9046106041 90461-06041 New Genuine Part
9048007454 90480-07454 Cover, Tube
9161140612 91611-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612 91611-G0612 Bolt
9161140614 91611-40614 Bolt, Hexagon(For Steering Column Bracket)
9161140614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161140840 91611-40840 New Genuine Part
9161140840 91611-60840 BOLT
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165160640 91651-60640 Bolt, Rear Body Mounting
9165160640 91651-B0640 Bolt, Rear Body Mounting
9699110080 96991-10080 CLIP
