Search › Model › KDY280
KDY280

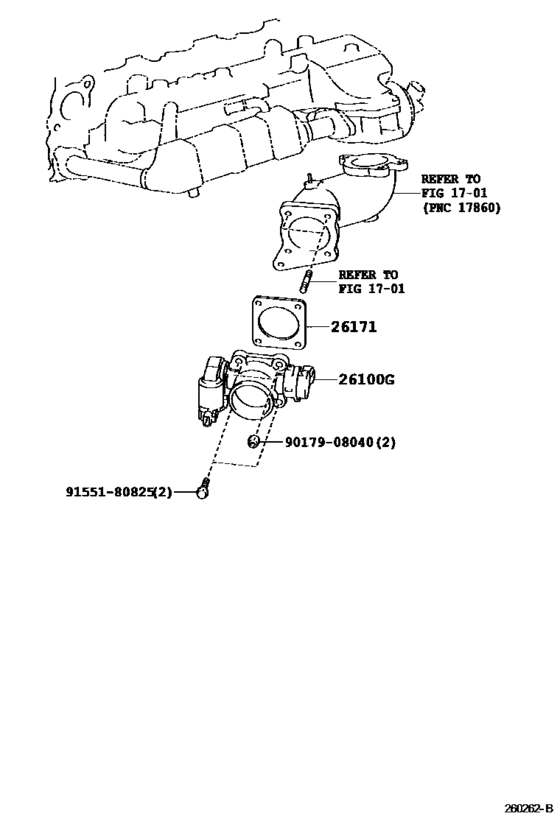

Venturi ([08.2004 - 08.2007] (0408-0708)2KDFTV) 4
| # | OEM | Part name |
|---|---|---|
| 26100 | 26100-30060 | Body Assy, Diesel Throttle |
| 26171 | 26171-30020 | Gasket, Venturi |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| OEM | Part name | Category |
|---|---|---|
| 26100-30060 | Body Assy, Diesel Throttle | Venturi ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 26171-30020 | Gasket, Venturi | Venturi ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Venturi ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Venturi ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
