KDY280

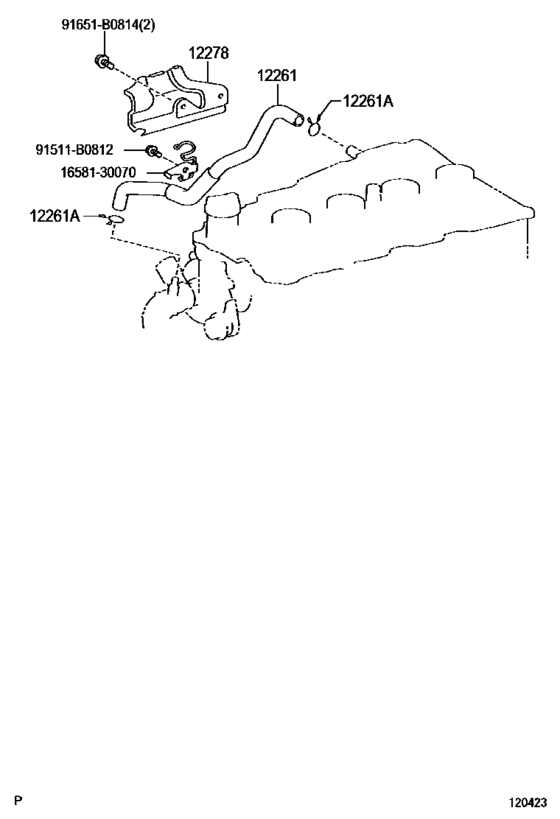

Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 12261 | 12261-30020 | Hose, Ventilation |
| 12261 | 90467-23002 | Clip Or Clamp(For Ventilation Hose) |
| 12278 | 12278-30020 | Insulator, Ventilation Hose Heat |
| 91511 | 91511-B0812 | BOLT FLANGE |
| 91651 | 91651-B0814 | Bolt with washer |
| 91651 | 90119-A0109 | New Genuine Part |
| 1658130070 | 16581-30070 | Clamp, Hose(for Water Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12261-30020 | Hose, Ventilation | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 12278-30020 | Insulator, Ventilation Hose Heat | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 16581-30070 | Clamp, Hose(for Water Hose) | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 90119-A0109 | New Genuine Part | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 90467-23002 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 91511-B0812 | BOLT FLANGE | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
| 91651-B0814 | Bolt with washer | Ventilation Hose ([08.2004 - 08.2007] (0408-0708)2KDFTV) |
