Search › Model › KDY280

KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

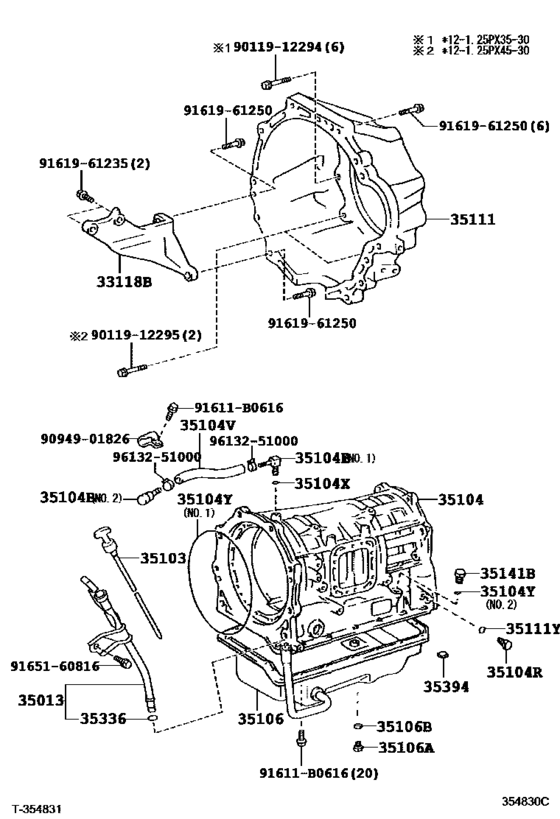

Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T) 28

#	OEM	Part name
33118	33118-35070	Plate, Stiffener, Rh(Mtm)
35013	35013-25140	Tube Sub-Assy, Transmission Oil Filler
35103	35103-25140	Gage Sub-Assy, Transmission Oil Level
35104	35104-60131	Case Sub-Assy, Automatic Transmission
35104	90930-03094	Plug, Breather, No.1 (Atm)
35104	90930-03168	Plug, Breather, No.1 (Atm)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90445-11133	Hose (For Breather Plug)
35104	90301-06005	Ring, O (For Breather Plug)
35104	90301-10189	Ring, O(For Oil Cooler Tube Union)
35104	90301-99067	Ring, O (For Automatic Transmission Case)
35106	35106-25040	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-18057	Drain Plug (with Magnet)
35106	12157-10010	Gasket (For Drain Plug)
35111	35111-25020	Housing, Automatic Transmission
35111	90301-06196	O Ring, Transaxle Case, No.1
35141	90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
9011912294	90119-12294	Bolt (For Transmission Housing & Case Setting)
9011912295	90119-12295	Bolt (For Transmission Housing & Case Setting)
9094901826	90949-01826	New Genuine Part
9161961235	91619-61235	BOLT
9161961250	91619-61250	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
33118-35070	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35013-25140	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35103-25140	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35104-60131	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35106-25040	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35111-25020	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90080-11396	Bolt	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90119-12294	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90119-12295	Bolt (For Transmission Housing & Case Setting)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-06005	Ring, O (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-99067	Ring, O (For Automatic Transmission Case)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90341-13001	Plug, W/head Straight Screw, No.3(For Transaxle Hsg & Case)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90341-18057	Drain Plug (with Magnet)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90445-11133	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90930-03094	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90930-03168	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90949-01826	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91611-B0616	Bolt(For Transaxle Case Receiver)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91619-61235	BOLT	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91619-61250	Bolt	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91651-60816	BOLT	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
