KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

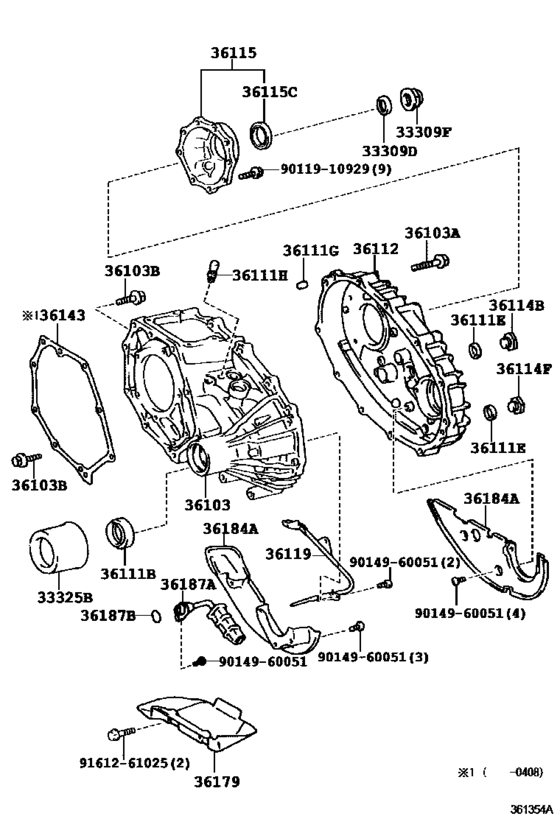

Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T) 27

#	OEM	Part name
33309	90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)
33309	90179-20010	Nut (For Transfer Output Shaft Companion Flange)
33325	33325-28020	Deflector, Dust (For Transfer Extension Front Housing)
36103	36103-28040	Case Sub-Assy, Transfer
36103	91612-61055	Bolt (For Transfer Case)
36103	90119-10615	Bolt (For Transfer Case & Adapter Setting)
36111	90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90250-10214	Pin, Straight(For End Plate)
36111	90930-03085	Plug, Breather
36112	36112-25010	Case, Transfer, Rear
36114	90341-18006	Plug (No magnet)
36114	90341-18065	Plug, No.1 (For Transfer Case)
36114	90341-18057	Drain Plug (with Magnet)
36115	36105-25010	Housing, Transfer Extension
36115	90311-38062	Seal, Type T Oil (For Transfer Extension Housing)
36115	90311-38090	Seal, Type T Oil (For Transfer Extension Housing)
36119	36119-25010	Receiver, Transfer Oil, No.1
36179	36179-25010	Protector, Transfer Case Lower
36184	36184-26010	Separator, Transfer Oil
36184	36184-28030	Separator, Transfer Oil
36187	36187-25010	Strainr, Transfer Oil, No.1
36187	96721-24017	Ring, O (For Transfer Oil Strainer)
9011910929	90119-10929	New Genuine Part
9014960051	90149-60051	New Genuine Part
9161261025	91612-61025	Bolt (For Control Shaft Cover)

OEM	Part name	Category
33325-28020	Deflector, Dust (For Transfer Extension Front Housing)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36103-28040	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36105-25010	Housing, Transfer Extension	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36112-25010	Case, Transfer, Rear	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36119-25010	Receiver, Transfer Oil, No.1	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36179-25010	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36184-26010	Separator, Transfer Oil	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36184-28030	Separator, Transfer Oil	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
36187-25010	Strainr, Transfer Oil, No.1	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90119-10615	Bolt (For Transfer Case & Adapter Setting)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90119-10929	New Genuine Part	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90149-60051	New Genuine Part	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90179-20010	Nut (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90311-38062	Seal, Type T Oil (For Transfer Extension Housing)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90311-38090	Seal, Type T Oil (For Transfer Extension Housing)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90341-18057	Drain Plug (with Magnet)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90341-18065	Plug, No.1 (For Transfer Case)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90430-18008	Gasket	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
90930-03085	Plug, Breather	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
91612-61025	Bolt (For Control Shaft Cover)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
91612-61055	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
96721-24017	Ring, O (For Transfer Oil Strainer)	Transfer Case & Extension Housing ([07.2001 - ] (0107- )KDY280,LY280..TB ; (0107- )KDY280, LY280..TW1 ; (0107- )KDY281,290, LY290,RZY281,TRY2 81..T4,TW1,VAN ; (0709- )KDY281..15T)
