KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

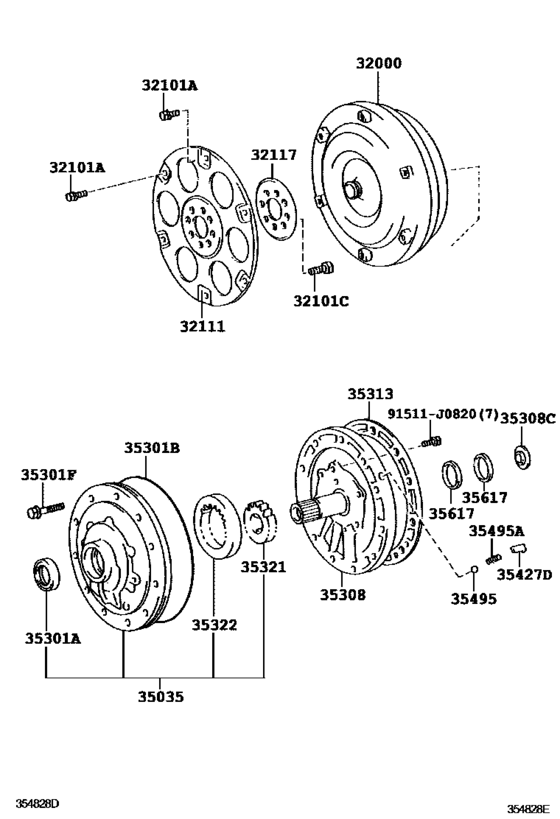

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T) 31

#	OEM	Part name
32000	32000-25030	Converter Assy, Torque
32101	90119-09026	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09027	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-13010	Bolt, Flywheel Setting
32111	32111-60050	Plate, Pump Impeller Drive
32117	32117-60050	Spacer, Drive Plate, Rear
35035	35035-25011	Body Sub-Assy, Fr Oil Pump & Gear
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99029	Ring, O (For Front Oil Pump Body)
35301	90105-08212	Bolt (For Front Oil Pump Setting)
35301	90105-08213	Bolt (For Front Oil Pump Setting)
35308	35308-25011	Cover Sub-Assy, Front Oil Pump
35308	35789-36040	Race, Thrust Bearing (For Front Oil Pump Cover)
35308	35789-36050	Race, Thrust Bearing (For Front Oil Pump Cover)
35308	35789-36060	Race, Thrust Bearing (For Front Oil Pump Cover)
35313	35313-60010	Gasket, Front Oil Pump Cover
35321	35321-25011	Gear, Front Oil Pump Drive
35321	35321-25021	Gear, Front Oil Pump Drive
35321	35321-25031	Gear, Front Oil Pump Drive
35321	35321-25040	Gear, Front Oil Pump Drive
35321	35321-25050	Gear, Front Oil Pump Drive
35322	35322-60011	Gear, Front Oil Pump Driven
35322	35322-60021	Gear, Front Oil Pump Driven
35322	35322-60031	Gear, Front Oil Pump Driven
35322	35322-60090	Gear, Front Oil Pump Driven
35322	35322-60100	Gear, Front Oil Pump Driven
35427	35427-60010	Seat, Check Valve Spring
35495	35495-60010	Ball, Check
35495	90501-18106	Spring, Compression (For Check Ball)
35617	35617-60010	Ring, Clutch Drum Oil Seal
91511	91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)

OEM	Part name	Category
32000-25030	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32111-60050	Plate, Pump Impeller Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32117-60050	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35035-25011	Body Sub-Assy, Fr Oil Pump & Gear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35308-25011	Cover Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35313-60010	Gasket, Front Oil Pump Cover	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35321-25011	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35321-25021	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35321-25031	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35321-25040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35321-25050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35322-60011	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35322-60021	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35322-60031	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35322-60090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35322-60100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35427-60010	Seat, Check Valve Spring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35495-60010	Ball, Check	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35617-60010	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35789-36040	Race, Thrust Bearing (For Front Oil Pump Cover)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35789-36050	Race, Thrust Bearing (For Front Oil Pump Cover)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
35789-36060	Race, Thrust Bearing (For Front Oil Pump Cover)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90105-08212	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90105-08213	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90105-13010	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90119-09026	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90119-09027	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-99029	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90501-18106	Spring, Compression (For Check Ball)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91511-J0820	Bolt, Washer Based Head Hexagon (For Transfer Case Cover)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
