Search › Model › KDY280

KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

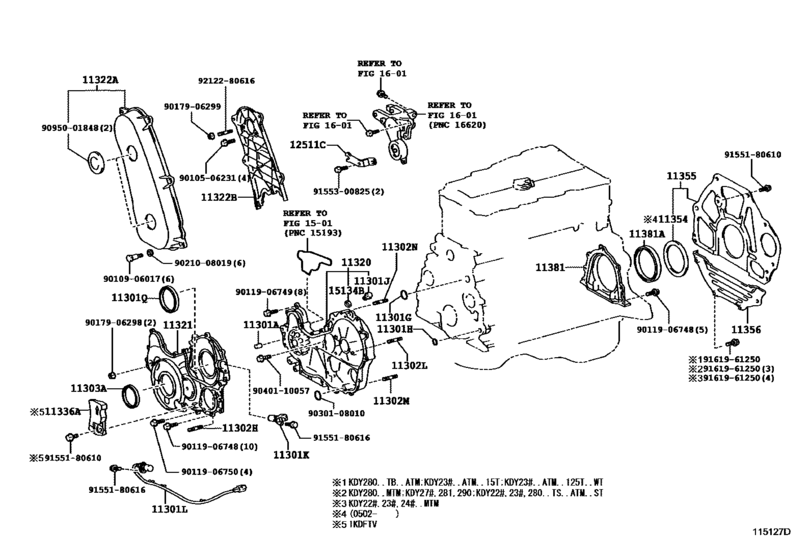

Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV) 47

#	OEM	Part name
11301	90250-08120	Pin, Straight, No.1
11301	90301-22007	Ring, O(For Timing Gear Case, Upper)
11301	90301-09018	Ring, O(For Timing Gear Case, Lower)
11301	90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)
11301	90919-05052	Sensor, Crank Position
11301	90919-05025	Sensor, Crank Position
11301	90919-05066	Sensor, Crank Position No.2
11301	90919-05050	Sensor, Crank Position No.2
11301	90311-65003	Seal, Type T Oil(For Injection Pump)
11302	90116-08374	Bolt, Stud(For Timing Gear Cover)
11302	90116-08376	Bolt, Stud(For Timing Gear Cover)
11302	90116-08377	Bolt, Stud(For Timing Gear Cover)
11302	90116-10160	Bolt,stud(For Timing Gear Case)
11302	92112-60614	Bolt, Stud(For Vacuum Transmitting Pipe)
11302	90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)
11303	90311-50017	Seal, Oil(For Timing Chain Or Belt Cover)
11303	90311-50051	Seal, Oil(For Crankshaft Front)
11320	11320-30021	Case Assy, Timing Gear
11321	11321-30020	Case, Timing Gear
11322	11332-30011	Cover, Timing Belt, No.1
11322	11322-30010	Cover, Timing Belt, No.2
11354	11354-30010	Seal, Flywheel Housing Dust
11355	11355-67010	Plate, Rear End
11355	11355-67011	Plate, Rear End
11356	11356-30030	Plate, Rear End, No.2
11381	11381-67020	Retainer, Engine Rear Oil Seal
11381	90311-95008	Seal, Engine Rear Oil
12511	12511-30031	Bracket, Alternator
15134	15134-67010	Gasket, Oil Pump Relief Valve
9010506231	90105-06231	BOLT WASHER BASED
9010906017	90109-06017	BOLT
9011906748	90119-06748	BOLT WWASHER
9011906749	90119-06749	BOLT WWASHER
9011906750	90119-06750	New Genuine Part
9011906750	91551-80660	BOLT FLANGE
9017906298	90179-06298	NUT
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9021008019	90210-08019	WASHER
9021008019	90080-21002	WASHER
9030108010	90301-08010	RING
9040110057	90401-10057	BOLT UNION
9095001848	90950-01848	New Genuine Part
9155180610	91551-80610	BOLT FLANGE
9155180616	91551-80616	BOLT FLANGE
9155300825	91553-00825	New Genuine Part
9161961250	91619-61250	Bolt
9212280616	92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)

OEM	Part name	Category
11320-30021	Case Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11321-30020	Case, Timing Gear	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11322-30010	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11332-30011	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11354-30010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11355-67010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11355-67011	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11356-30030	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
11381-67020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
12511-30031	Bracket, Alternator	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
15134-67010	Gasket, Oil Pump Relief Valve	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90105-06231	BOLT WASHER BASED	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90109-06017	BOLT	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90116-08374	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90116-08376	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90116-08377	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90116-10160	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90119-06748	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90119-06749	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90119-06750	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90126-06029	Bolt, Stud(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90179-06298	NUT	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90179-06299	Nut, Wire Adjusting, No.1	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90250-08120	Pin, Straight, No.1	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90301-08010	RING	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90301-09018	Ring, O(For Timing Gear Case, Lower)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90301-22007	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90311-50017	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90311-50051	Seal, Oil(For Crankshaft Front)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90311-65003	Seal, Type T Oil(For Injection Pump)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90311-95008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90341-18015	Plug, W/head Straight Screw(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90401-10057	BOLT UNION	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90919-05025	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90919-05050	Sensor, Crank Position No.2	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90919-05052	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90919-05066	Sensor, Crank Position No.2	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
90950-01848	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
91551-80610	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
91551-80660	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
91553-00825	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
91619-61250	Bolt	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
92112-60614	Bolt, Stud(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709-1008)1KDFTV)
