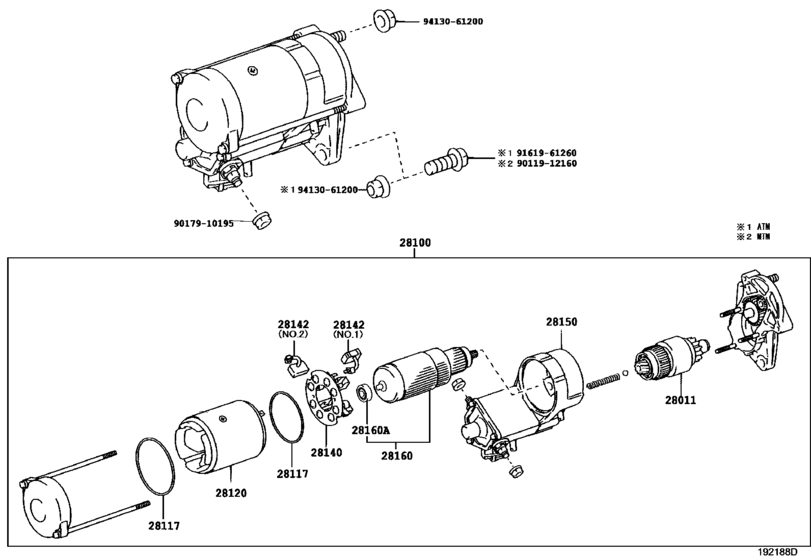

| 28011-30050 |
Clutch Sub-Assy, Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28100-30070 |
Starter Assy |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28100-30071 |
Starter Assy |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28100-30080 |
Starter Assy |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28100-30081 |
Starter Assy |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28120-67020 |
Yoke Assy, Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28120-67090 |
Yoke Assy, Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28140-67090 |
Holder Assy, Starter Brush |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28140-77090 |
Holder Assy, Starter Brush |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28150-30050 |
Switch Assy, Magnet Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28150-30070 |
Switch Assy, Magnet Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28160-54160 |
Armature Assy, Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 28160-67090 |
Armature Assy, Starter |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 90099-65030 |
Bearing, Starter Armature |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 90119-12160 |
BOLT WWASHER |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 90179-10195 |
NUT WWASHER |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 91619-61260 |
Bolt(For Transaxle & Engine Setting) |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
| 94130-61200 |
Nut |
Starter ([08.2004 - ] 12V 3.0KW (0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408- )1KDFTV,2KDFTV..KDY220,230,24#, 27#,280,290) |
