KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories
KDY280 ×

← Back to categories

3,817 items

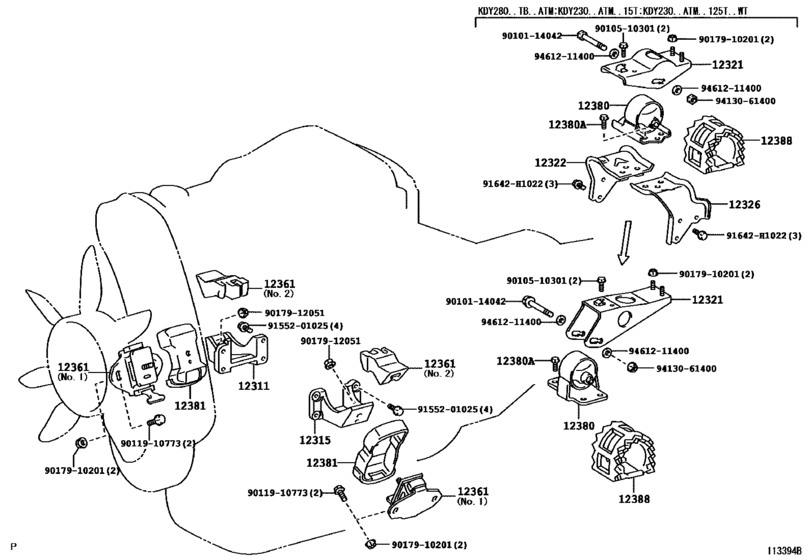

Mounting ([08.2004 - 08.2007] (0408-0708)2KDFTV) 30
#OEMPart name
12311 12311-30090 Bracket, Engine Mounting, Front No.1 Rh
12311 12311-30091 Bracket, Engine Mounting, Front No.1 Rh
12311 12311-67021 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-30090 Bracket, Engine Mounting, Front No.1 Lh
12315 12315-30091 Bracket, Engine Mounting, Front No.1 Lh
12315 12315-67011 Bracket, Engine Mounting, Front No.1 Lh
12321 12321-54130 Bracket, Engine Mounting, Rear, No.1
12322 12322-30020 Bracket, Engine Mounting, Rear No.2
12322 12322-54161 Bracket, Engine Mounting, Rear No.2
12326 12326-30020 Bracket, Engine Mounting Stay
12326 12326-54031 Bracket, Engine Mounting Stay
12361 12361-30070 Insulator Assy, Engine Mounting, Front
12361 12361-54241 Insulator, Engine Mounting, Front
12361 12361-54242 Insulator, Engine Mounting, Front
12380 12380-54100 Insulator Assy, Engine Mounting, Rear
12380 90105-10514 Bolt(For Engine Mounting Insurator)
12381 12381-54050 Stabilizer, Engine Mounting
12381 12381-54052 Stabilizer, Engine Mounting
12381 12381-54051 Stabilizer, Engine Mounting
12388 12388-67011 Stopper, Engine Mounting Bracket, Rear
91642 91642-H1022 BOLT W-WASHER
9010114042 90101-14042 BOLT HEXAGON
9010510301 90105-10301 BOLT WASHER BASED
9011910773 90119-10773 BOLTWWASHER
9011910773 90119-10813 BOLT W-WASHER
9017910201 90179-10201 NUT
9017912051 90179-12051 Nut(For Front Stabilizer Link)
9155201025 91552-01025 New Genuine Part
9413061400 94130-61400 Nut, Lock
9461211400 94612-11400 WASHERPLATE
