KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

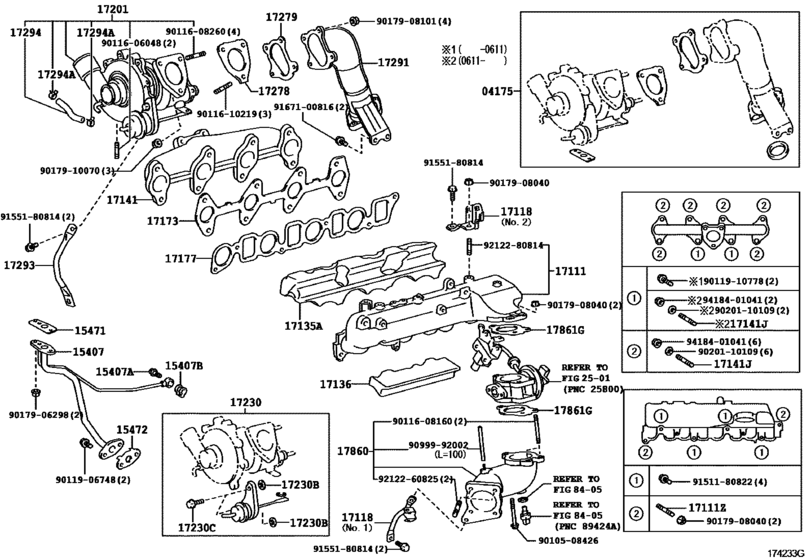

Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV) 55

#	OEM	Part name
4175	04175-30030	Gasket Kit, Turbocharger
15407	15407-30020	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-30010	Gasket, Turbo Oil Inlet
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-67010	Gasket, Turbo Oil Outlet, No.1
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
17111	17101-30020	Manifold, Intake
17111	92122-80822	Bolt, Stud(For Water Outlet)
17118	17118-30050	Stay, Manifold
17118	17118-30060	Stay, Manifold
17135	17135-30011	Insulator, Intake Manifold, No.1
17136	17136-30010	Insulator, Intake Manifold, No.2
17141	17141-30041	Manifold, Exhaust
17141	90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)
17173	17173-30020	Gasket, Exhaust Manifold To Head
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17201	17201-30090	Turbocharger Sub-Assy
17230	17230-39065	Actuator Assy, W/bracket
17230	90201-06042	Washer, Plate(For Repair Actuator Set)
17230	90201-06043	Washer, Plate(For Repair Actuator Set)
17230	90201-06044	Washer, Plate(For Repair Actuator Set)
17230	90201-06045	Washer, Plate(For Repair Actuator Set)
17230	91551-80618	Bolt, W/washer(For Repair Actuator Set)
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-30020	Gasket, Turbine Outlet Elbow
17291	17291-30040	Elbow, Turbine Outlet
17293	17293-30020	Stay, Turbocharger
17294	90445-12158	Hose, Actuator
17294	96132-51100	Clip (For Hose)
17860	17860-30060	Connector Assy, Intake Air
17861	26171-30013	Gasket, Intake Air Connector
17861	26171-30030	Gasket, Intake Air Connector
9010508426	90105-08426	New Genuine Part
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9011608160	90116-08160	Bolt, Stud(For Manifold To Carburetor)
9011608260	90116-08260	Bolt, Stud(For Turbine Housing)
9011610219	90116-10219	Bolt, Stud(For Turbocharger)
9011906748	90119-06748	BOLT WWASHER
9011910778	90119-10778	BOLT W-WASHER
9017906298	90179-06298	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908101	90179-08101	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9020110109	90201-10109	WASHER PLATE
9099992002	90999-92002	Air Hose (300 mm)
9151180822	91511-80822	New Genuine Part
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9167100816	91671-00816	New Genuine Part
9212260825	92122-60825	Bolt, Stud(For Manifold To Carburetor)
9212280814	92122-80814	New Genuine Part
9418401041	94184-01041	Nut

OEM	Part name	Category
04175-30030	Gasket Kit, Turbocharger	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
15407-30020	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
15471-30010	Gasket, Turbo Oil Inlet	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
15472-67010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17101-30020	Manifold, Intake	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17118-30050	Stay, Manifold	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17118-30060	Stay, Manifold	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17135-30011	Insulator, Intake Manifold, No.1	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17136-30010	Insulator, Intake Manifold, No.2	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17141-30041	Manifold, Exhaust	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17173-30020	Gasket, Exhaust Manifold To Head	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17201-30090	Turbocharger Sub-Assy	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17230-39065	Actuator Assy, W/bracket	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17279-30020	Gasket, Turbine Outlet Elbow	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17291-30040	Elbow, Turbine Outlet	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17293-30020	Stay, Turbocharger	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
17860-30060	Connector Assy, Intake Air	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
26171-30013	Gasket, Intake Air Connector	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
26171-30030	Gasket, Intake Air Connector	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90105-08426	New Genuine Part	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90116-08160	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90116-08260	Bolt, Stud(For Turbine Housing)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90116-10219	Bolt, Stud(For Turbocharger)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90119-06748	BOLT WWASHER	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90119-10778	BOLT W-WASHER	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90179-06298	NUT	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90179-08101	NUT	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90201-06042	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90201-06043	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90201-06044	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90201-06045	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90201-10109	WASHER PLATE	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90445-12158	Hose, Actuator	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
90999-92002	Air Hose (300 mm)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
91511-80822	New Genuine Part	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
91671-00816	New Genuine Part	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
92122-60825	Bolt, Stud(For Manifold To Carburetor)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
92122-80814	New Genuine Part	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
92122-80822	Bolt, Stud(For Water Outlet)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
94184-01041	Nut	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
96132-51100	Clip (For Hose)	Manifold ([08.2004 - 08.2007] (0408-0708)2KDFTV)
