KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories
KDY280 ×

← Back to categories

3,817 items

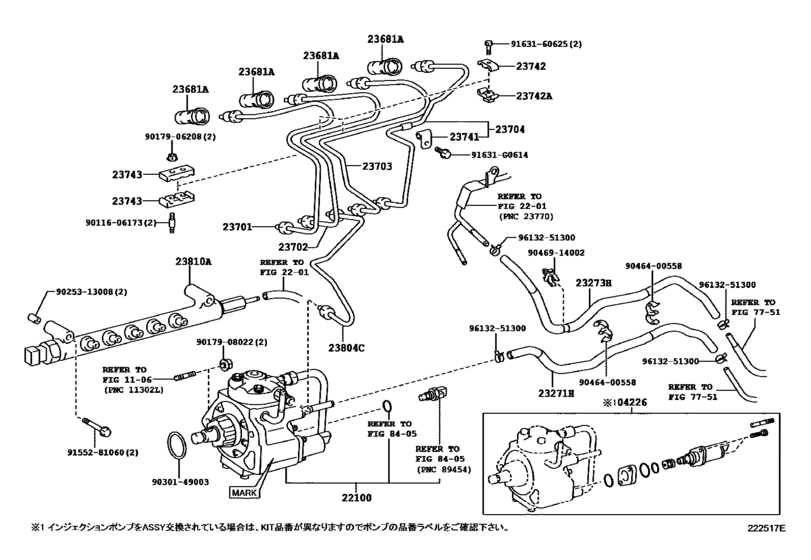

Injection Pump Assembly ([08.2004 - 10.2006] (0408-0610)2KDFTV) 32
#OEMPart name
4226 04226-30010 Valve Kit, Suction Control
4226 04226-30020 Valve Kit, Suction Control
22100 22100-30040 Pump Assy, Injection Or Supply
22100 22100-30090 Pump Assy, Injection Or Supply
23271 23271-30160 Hose, Fuel, No.1
23271 23271-30161 Hose, Fuel, No.1
23273 23273-30100 Hose, Fuel, No.2
23273 23273-30101 Hose, Fuel, No.2
23681 23681-30010 Seal, Nozzle Holder
23701 23701-30040 Pipe Sub-Assy, Injection, No.1
23702 23702-30040 Pipe Sub-Assy, Injection, No.2
23703 23703-30040 Pipe Sub-Assy, Injection, No.3
23704 23704-39045 Pipe Sub-Assy, Injection, No.4
23741 23741-30010 Clamp, Injection Pipe, No.1
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-58020 Clamp, Injection Pipe, No.2
23743 23743-30011 Clamp, Injection Pipe, No.3
23804 23804-30040 Pipe Sub-Assy, Fuel Inlet
23810 23810-0L010 Rail Assy, Common
23810 23810-0L011 Rail Assy, Common
23810 23810-0L020 Rail Assy, Common
91631 91631-G0614 BOT WWASHER
9011606173 90116-06173 BOLT STUD
9017906208 90179-06208 NUT
9017908022 90179-08022 NUT
9025313008 90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set)
9030149003 90301-49003 Gasket, Injection Pump
9046400558 90464-00558 Clip Or Clamp (For Heater Water Hose)
9046914002 90469-14002 New Genuine Part
9155281060 91552-81060 Bolt, No.3(For Alternator)
9163160625 91631-60625 BOLT WWASHER
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
