| 77001-25441 |

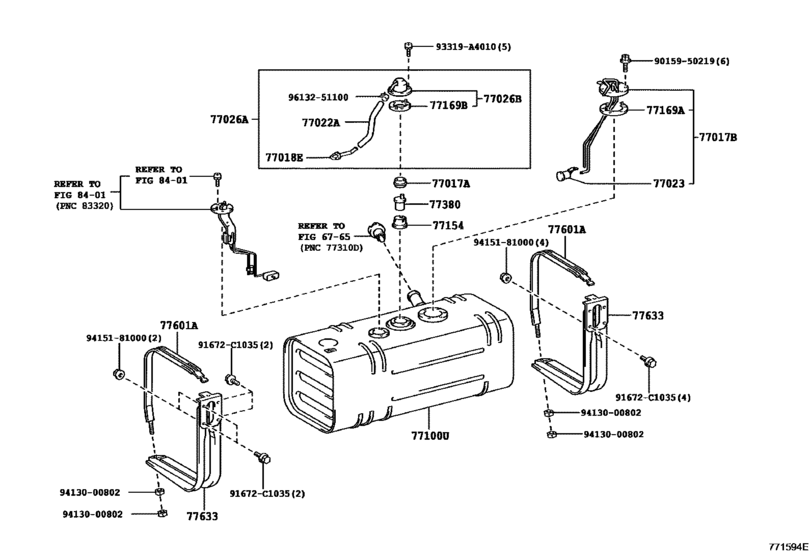

Tank Sub-Assy, Fuel |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77017-25170 |
Tube Sub-Assy, Fuel Tank Vent |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77023-36010 |
Filter Sub-Assy, Fuel Suction Tube |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77026-25010 |
Tube Sub-Assy, Fuel Evaporation, No.1 |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77026-37010 |
Tube Sub-Assy, Fuel Evaporation, No.1 |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77154-25010 |
Plate, Fuel Tank Evap/vent Tube Support |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77169-14020 |
Gasket, Fuel Tank Vent |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77169-32010 |
Gasket, Fuel Pump Bracket |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77178-44010 |
Gasket, Fuel Tank Vent |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77244-25030 |
Tube Sub-Assy, Fuel Tank Evaporation Vent |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77380-26010 |
Valve Assy, Fuel Cut Off |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77501-25160 |
Stay, Fuel Tank |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 77601-25120 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 90159-50219 |
BOLT |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 90159-A0057 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 90170-A0001 |
New Genuine Part |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 93319-A4010 |
SCREW WWASHER |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 94130-00802 |
Nut, No.1 (For Center Support Bearing) |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 94151-81000 |
NUT FLANGE |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 95333-06030 |
Hose, Fuel |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 95338-06030 |
HOSE, FUEL |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
| 96132-51100 |
Clip (For Hose) |
Fuel Tank & Tube ([08.2004 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0408- )KDY22#,23#,27#,28#..CBU,IV3) |
