KDY280

Toyota DYNA-TOYOACE · 2004 · 3,817 parts · 198 categories

3,817 items

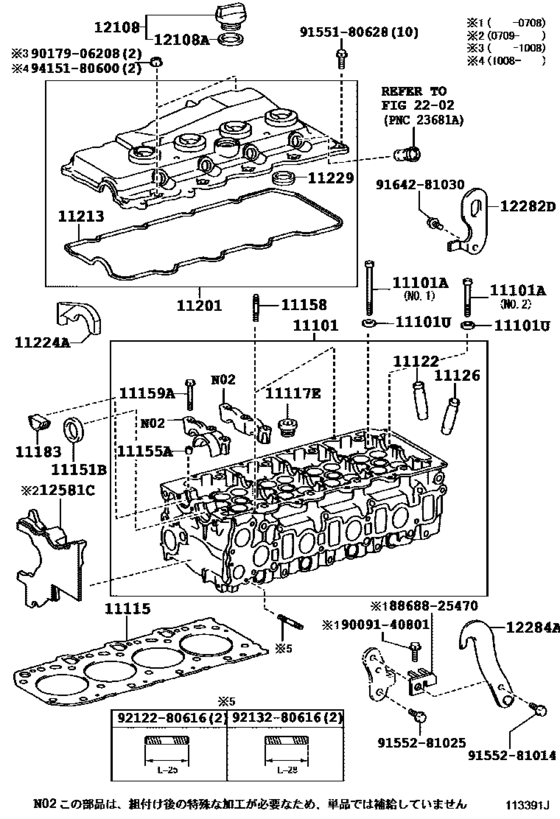

Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV) 46

#	OEM	Part name
11101	11101-0L050	Head Sub-Assy, Cylinder
11101	11101-30071	Head Sub-Assy, Cylinder
11101	11101-30060	Head Sub-Assy, Cylinder
11101	90910-02145	Bolt(For Cylinder Head Set)
11101	90910-02146	Bolt(For Cylinder Head Set)
11101	90560-13023	Spacer(For Cylinder Head Set Bolt)
11115	11115-30040-A0	Gasket, Cylinder Head
11115	11115-30041-A0	Gasket, Cylinder Head
11115	11115-30040-B0	Gasket, Cylinder Head
11115	11115-30041-B0	Gasket, Cylinder Head
11115	11115-30040-C0	Gasket, Cylinder Head
11115	11115-30041-C0	Gasket, Cylinder Head
11115	11115-30040-D0	Gasket, Cylinder Head
11115	11115-30041-D0	Gasket, Cylinder Head
11115	11115-30040-E0	Gasket, Cylinder Head
11115	11115-30041-E0	Gasket, Cylinder Head
11117	90341-14015	Plug, W/head Straight Screw, No.1
11117	90341-T0005	Plug, W/head Straight Screw, No.1
11122	11122-30020	Bush, Valve Guide (OS 0.05)
11122	11123-30020	Bush, Valve Guide
11151	90311-32019	Seal, Oil(For Camshaft Setting)
11155	90253-10004	Pin, Ring W/head
11155	90253-T0001	Pin, Ring W/head
11158	90116-06149	Bolt, Stud(For Head To Cylinder Head Cover)
11159	90119-07011	Bolt(For Head To Camshaft Bearing Cap)
11183	11183-67020	Plug, Semicircular
11201	11210-30090	Cover Sub-Assy, Cylinder Head
11213	11213-30020	Gasket, Cylinder Head Cover
11213	11213-30021	Gasket, Cylinder Head Cover
11224	11224-30010	Silencer, Cylinder Head Cover, No.1
11224	11224-30020	Silencer, Cylinder Head Cover, No.1
11229	23682-30020	Gasket, Cylinder Head Cover, No.3
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12282	12282-67030	Hanger, Engine, No.2
12284	12284-30020	Hanger, Engine, No.1 Upper
8868825470	88688-25470	Bracket, Cooler Diaphragm
9009140801	90091-40801	New Genuine Part
9017906208	90179-06208	NUT
9155180628	91551-80628	BOLT FLANGE
9155281014	91552-81014	New Genuine Part
9155281025	91552-81025	BOLT TLANGE
9164281030	91642-81030	Bolt
9212280616	92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)
9213280616	92132-80616	BOLTSTUD
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
11101-0L050	Head Sub-Assy, Cylinder	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11101-30060	Head Sub-Assy, Cylinder	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11101-30071	Head Sub-Assy, Cylinder	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30040-A0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30040-B0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30040-C0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30040-D0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30040-E0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30041-A0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30041-B0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30041-C0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30041-D0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11115-30041-E0	Gasket, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11122-30020	Bush, Valve Guide (OS 0.05)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11123-30020	Bush, Valve Guide	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11183-67020	Plug, Semicircular	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11210-30090	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11213-30020	Gasket, Cylinder Head Cover	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11213-30021	Gasket, Cylinder Head Cover	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11224-30010	Silencer, Cylinder Head Cover, No.1	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
11224-30020	Silencer, Cylinder Head Cover, No.1	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
12282-67030	Hanger, Engine, No.2	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
12284-30020	Hanger, Engine, No.1 Upper	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
23682-30020	Gasket, Cylinder Head Cover, No.3	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
88688-25470	Bracket, Cooler Diaphragm	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90091-40801	New Genuine Part	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90116-06149	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90119-07011	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90179-06208	NUT	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90253-10004	Pin, Ring W/head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90253-T0001	Pin, Ring W/head	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90311-32019	Seal, Oil(For Camshaft Setting)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90341-14015	Plug, W/head Straight Screw, No.1	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90341-T0005	Plug, W/head Straight Screw, No.1	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90560-13023	Spacer(For Cylinder Head Set Bolt)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90910-02145	Bolt(For Cylinder Head Set)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
90910-02146	Bolt(For Cylinder Head Set)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
91551-80628	BOLT FLANGE	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
91552-81014	New Genuine Part	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
91552-81025	BOLT TLANGE	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
91642-81030	Bolt	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
92122-80616	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
92132-80616	BOLTSTUD	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([08.2004 - 08.2007] (0408-0708)2KDFTV ; (0709- )1KDFTV)
