KDY271

Toyota DYNA-TOYOACE · 2007 · 4,850 parts · 253 categories

4,850 items

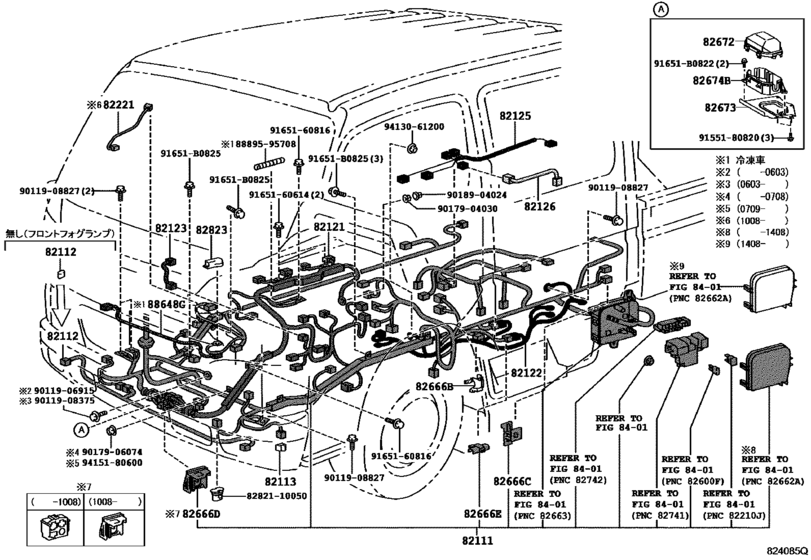

Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#) 53

#	OEM	Part name
82111	82111-25E40	Wire, Engine Room Main
82111	82111-25E41	Wire, Engine Room Main
82111	82111-25E50	Wire, Engine Room Main
82111	82111-25E51	Wire, Engine Room Main
82111	82111-25K80	Wire, Engine Room Main
82111	82111-25N20	Wire, Engine Room Main
82111	82111-25N21	Wire, Engine Room Main
82111	82111-25N22	Wire, Engine Room Main
82111	82111-25N30	Wire, Engine Room Main
82111	82111-25N31	Wire, Engine Room Main
82111	82111-25N32	Wire, Engine Room Main
82112	82112-25030	Wire, Engine Room, No.2
82112	82112-25040	Wire, Engine Room, No.2
82112	82112-25060	Wire, Engine Room, No.2
82112	82112-25070	Wire, Engine Room, No.2
82112	82114-37220	Wire, Engine Room, No.2
82113	82113-25010	Wire, Engine Room, No.3
82121	82121-25550	Wire, Engine
82121	82121-25580	Wire, Engine
82121	82121-25600	Wire, Engine
82122	82122-25540	Wire, Engine, No.2
82122	82122-25560	Wire, Engine, No.2
82122	82122-25650	Wire, Engine, No.2
82122	82122-25700	Wire, Engine, No.2
82122	82122-25750	Wire, Engine, No.2
82125	82125-25200	Wire, Transmission
82221	82221-25020	Wire, Oil Pressure Switch
82666	82666-25020	Holder, Connector No.3
82666	82666-25030	Holder, Connector No.4
82666	82666-25040	Holder, Connector No.5
82666	82666-25060	Holder, Connector No.5
82666	82666-25050	Holder, Connector No.6
82672	82672-25010	Cover, Junktion Block
82673	82673-25021	Bracket, Junction Block
82673	82673-25022	Bracket, Junction Block
82674	82674-25010	Cover, Junction Block, Lower
82823	82823-22050	Cap, Terminal, No.1
91651	91651-B0822	BOLT WWASHER
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
8282110050	82821-10050	Retainer, Headlamp Harness
8889595708	88895-95708	Insulator, Hose (For Idle Up Device)
9011906915	90119-06915	BOLT W-WASHER
9011908375	90119-08375	BOLT
9011908827	90119-08827	New Genuine Part
9017904030	90179-04030	Nut, Connecting(For Glow Plug)
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9018904024	90189-04024	Grommet, Screw(For Glow Plug)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9165160614	91651-60614	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9413061200	94130-61200	Nut
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
82111-25E40	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25E41	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25E50	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25E51	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25K80	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N20	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N21	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N22	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N30	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N31	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82111-25N32	Wire, Engine Room Main	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82112-25030	Wire, Engine Room, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82112-25040	Wire, Engine Room, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82112-25060	Wire, Engine Room, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82112-25070	Wire, Engine Room, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82113-25010	Wire, Engine Room, No.3	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82114-37220	Wire, Engine Room, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82121-25550	Wire, Engine	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82121-25580	Wire, Engine	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82121-25600	Wire, Engine	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82122-25540	Wire, Engine, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82122-25560	Wire, Engine, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82122-25650	Wire, Engine, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82122-25700	Wire, Engine, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82122-25750	Wire, Engine, No.2	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82125-25200	Wire, Transmission	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82221-25020	Wire, Oil Pressure Switch	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82666-25020	Holder, Connector No.3	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82666-25030	Holder, Connector No.4	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82666-25040	Holder, Connector No.5	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82666-25050	Holder, Connector No.6	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82666-25060	Holder, Connector No.5	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82672-25010	Cover, Junktion Block	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82673-25021	Bracket, Junction Block	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82673-25022	Bracket, Junction Block	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82674-25010	Cover, Junction Block, Lower	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82821-10050	Retainer, Headlamp Harness	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
88895-95708	Insulator, Hose (For Idle Up Device)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90080-11396	Bolt	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90119-08375	BOLT	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90119-08827	New Genuine Part	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90179-04030	Nut, Connecting(For Glow Plug)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90179-06074	Nut(For Suspension Control Oil Cooler)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
90189-04024	Grommet, Screw(For Glow Plug)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
91651-60614	Bolt	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
91651-60816	BOLT	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
91651-B0822	BOLT WWASHER	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
94130-61200	Nut	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Wiring & Clamp ([08.2004 - ] ｴﾝｼﾞﾝﾙｰﾑ (0408- )KDY22#,23#,27#,28#)
