Search › Model › KDY271
KDY271

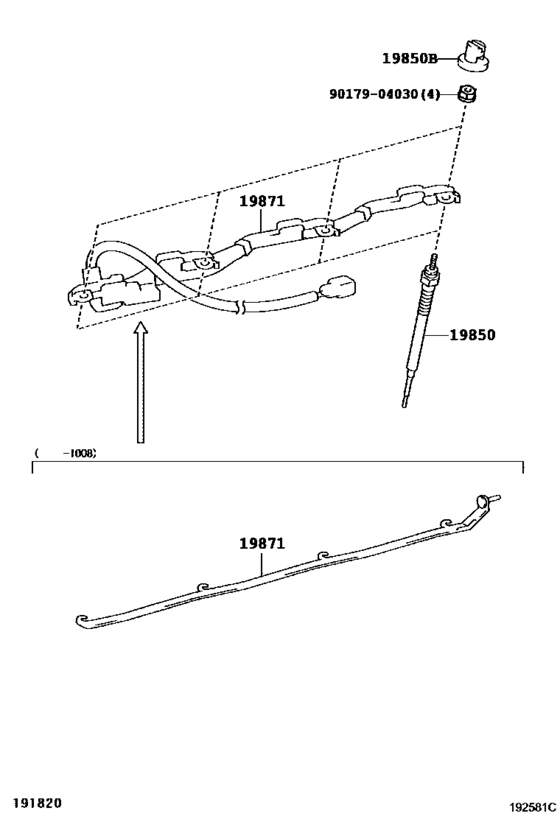

Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 19850 | 19850-30020 | Plug Assy, Glow |
| 19850 | 19850-30040 | Plug Assy, Glow |
| 19850 | 90189-04024 | Grommet, Screw(For Glow Plug) |
| 19871 | 19871-30050 | Connector, Glow Plug No.1 |
| 19871 | 19871-30080 | Connector, Glow Plug No.1 |
| 19871 | 19871-30081 | Connector, Glow Plug No.1 |
| 9017904030 | 90179-04030 | Nut, Connecting(For Glow Plug) |
| OEM | Part name | Category |
|---|---|---|
| 19850-30020 | Plug Assy, Glow | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 19850-30040 | Plug Assy, Glow | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 19871-30050 | Connector, Glow Plug No.1 | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 19871-30080 | Connector, Glow Plug No.1 | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 19871-30081 | Connector, Glow Plug No.1 | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 90179-04030 | Nut, Connecting(For Glow Plug) | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
| 90189-04024 | Grommet, Screw(For Glow Plug) | Ignition Coil & Spark Plug ([09.2007 - ] (0709- )1KDFTV) |
