Search › Model › KDY241

KDY241

Toyota DYNA-TOYOACE · 2007 · 5,099 parts · 260 categories

5,099 items

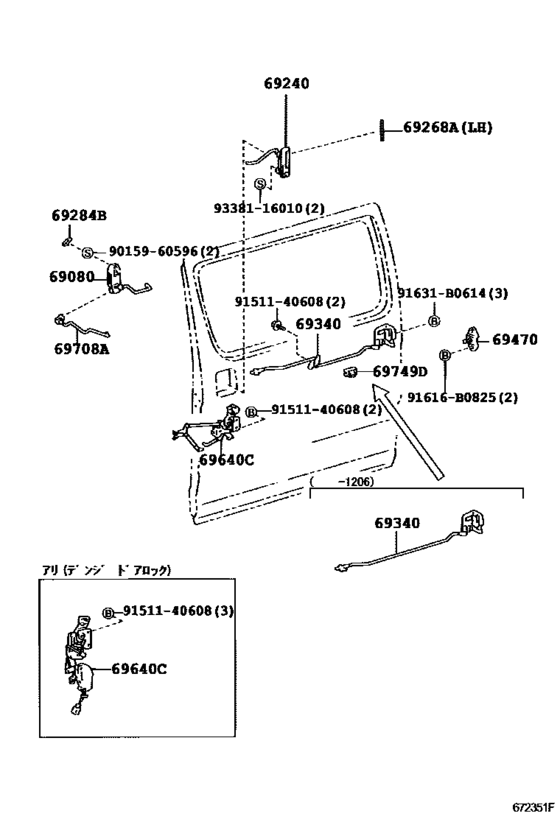

Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290) 21

#	OEM	Part name
69080	69080-26030-B1	Handle Assy, Slide Door, Inside, Lh
69080	69080-26030-B3	Handle Assy, Slide Door, Inside, Lh
69240	69240-26040	Handle Assy, Rear Door Outside, Lh
69268	69268-95J01	Seal, Slide Door Inside Handle, No.1
69284	69284-95J00-B2	Plug, Slide Door Inside Handle
69284	69284-95J00-B5	Plug, Slide Door Inside Handle
69340	69340-25020	Lock Assy, Rear Door, Lh
69340	69340-95J01	Lock Assy, Rear Door, Lh
69470	69470-26010	Plate Assy, Slide Door Lock Striker
69640	69640-25010	Control Assy, Slide Door Lock Remote, Lh
69640	69640-25020	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26150	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26160	Control Assy, Slide Door Lock Remote, Lh
69708	69708-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69708	69708-95J01-B3	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69749	69749-95J00	Clamp, Rear Door Lock Link
91616	91616-B0825	New Genuine Part
91631	91631-B0614	BOLT WWASHER
9015960596	90159-60596	SCREW WWASHER
9151140608	91511-40608	New Genuine Part
9338116010	93381-16010	New Genuine Part

OEM	Part name	Category
69080-26030-B1	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69080-26030-B3	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69240-26040	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69268-95J01	Seal, Slide Door Inside Handle, No.1	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69284-95J00-B2	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69284-95J00-B5	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69340-25020	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69340-95J01	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69470-26010	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69640-25010	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69640-25020	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69640-26150	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69640-26160	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69708-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69708-95J01-B3	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
69749-95J00	Clamp, Rear Door Lock Link	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
90159-60596	SCREW WWASHER	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
91511-40608	New Genuine Part	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
91616-B0825	New Genuine Part	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
91631-B0614	BOLT WWASHER	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
93381-16010	New Genuine Part	Rear Door Lock & Handle ([07.2001 - ] (0107- )KDY24#,290,LY240,290)
