KDY241

Toyota DYNA-TOYOACE · 2007 · 5,099 parts · 260 categories
KDY241 ×

← Back to categories

5,099 items

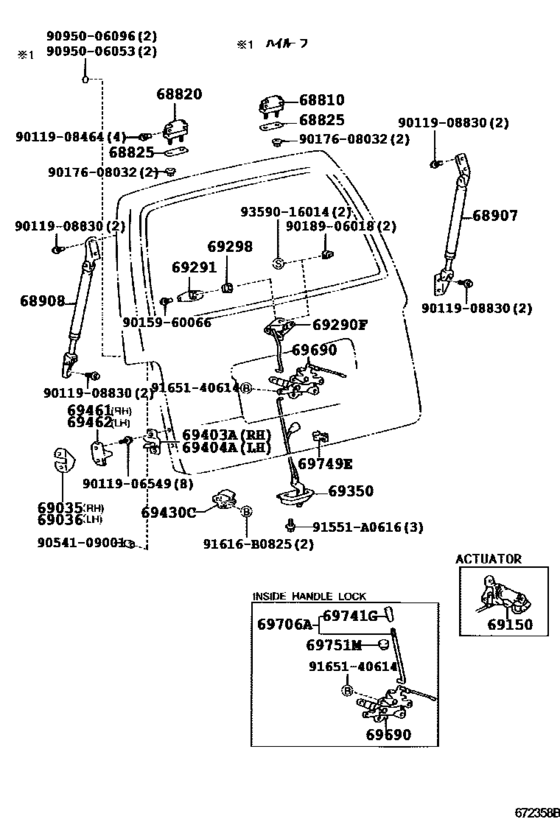

Back Door Lock & Hinge ([07.2001 - 03.2009] ﾊﾈｱｹﾞｼｷ ﾊﾞﾂｸﾄﾞｱ (0107-0903)KDY24#,290,LY240,290) 48
#OEMPart name
68810 68810-95J02 Hinge Assy, Back Door, Upper
68810 68810-95J03 Hinge Sub-Assy, Back Door, Upper Rh
68820 68820-95J02 Hinge Assy, Back Door, Lower
68820 68820-95J03 Hinge Sub-Assy, Back Door, Upper Lh
68825 68825-95700 Plate, Back Door Hinge
68907 68907-26480 Stay Sub-Assy, Back Door Damper, Rh
68907 68907-26490 Stay Sub-Assy, Back Door Damper, Rh
68907 68907-26550 Stay Sub-Assy, Back Door Damper, Rh
68907 68907-95J19 Stay Sub-Assy, Back Door Damper, Rh
68908 68908-26480 Stay Sub-Assy, Back Door Damper, Lh
68908 68908-26490 Stay Sub-Assy, Back Door Damper, Lh
68908 68908-26550 Stay Sub-Assy, Back Door Damper, Lh
68908 68908-95J19 Stay Sub-Assy, Back Door Damper, Lh
69035 69035-26010 Guide Sub-Assy, Back Door Side Stopper, Rh
69036 69036-26010 Guide Sub-Assy, Back Door Side Stopper, Lh
69150 69150-95J00 Actuator Assy, Back Door Lock
69290 69290-95J01 Handle Assy, Back Door Inside
69291 69291-95J00-B2 Handle Assy, Back Door Inside
69291 69291-95J01 Handle Assy, Back Door Inside
69298 69298-95J00 Cover, Back Door Inside Handle
69350 69350-95J01 Lock Assy, Back Door
69350 69350-37020 Lock Assy, Back Door
69350 69350-37021 BACK DOOR LOCK ASSY
69403 69403-26050 Stopper Sub-Assy, Back Door Side Female, Rh
69430 69430-95J00 Striker Assy, Back Door Lock
69461 69461-26060 Stopper, Back Door Side Male, Rh
69461 69461-95J04 Stopper, Back Door Side Male, Rh
69462 69462-37010 Stopper, Back Door Side Male, Lh
69690 69690-95J04 Control Assy, Back Door Remote
69706 69706-95J01 Rod Sub-Assy, Back Door Lock Remote Control
69741 69741-28010-B2 Knob, Door Lock Control(For Back Door)
69749 69749-30020 Clamp, No.1(For Back Door Lock Control Cable)
69751 69751-95J00-B2 Holder, Door Lock Control Knob(For Back Door)
69751 69751-95J01 Holder, Door Lock Control Knob(For Back Door)
91551 91551-A0616 New Genuine Part
91616 91616-B0825 New Genuine Part
9011906549 90119-06549 BOLT WWASHER
9011908464 90119-08464 Bolt, W/washer(For Side Gate, Rh)
9011908830 90119-08830 Bolt(For Oil Receiver Pipe)
9011908830 47327-60232 Tube, Rear Brake, No.7
9015960066 90159-60066 New Genuine Part
9017608032 90176-08032 New Genuine Part
9018906018 90189-06018 GROMMET
9054109001 90541-09001 Cushion, Back Door Lock
9095006053 90950-06053 New Genuine Part
9095006096 90950-06096 Plug, Hole(For Hood)
9165140614 91651-40614 Bolt
9359016014 93590-16014 New Genuine Part
