KDY230

Toyota DYNA-TOYOACE · 2001 · 3,315 parts · 187 categories

3,315 items

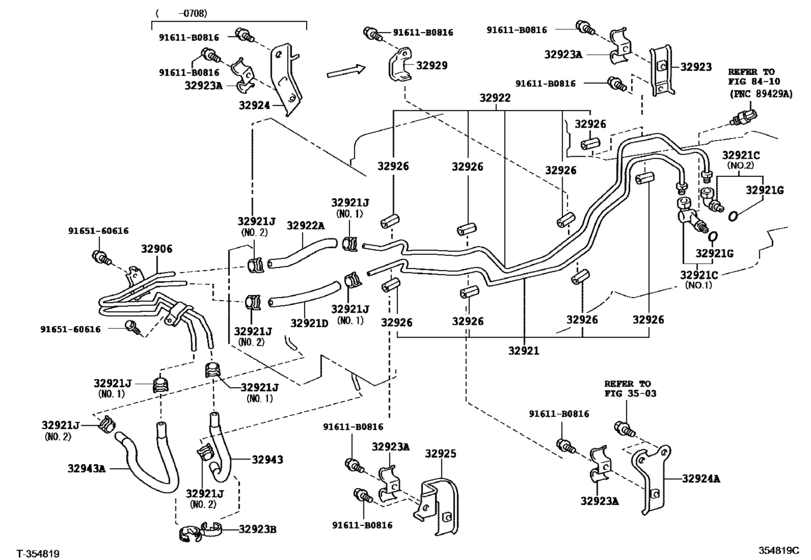

Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T) 20

#	OEM	Part name
32906	32907-25040	Tube Sub-Assy, Oil Cooler
32921	32921-25160	Tube, Oil Cooler Inlet, No.1
32921	90407-20004	Union(For Oil Cooler Tube)
32921	90407-20007	Union(For Oil Cooler Tube)
32921	90445-17103	Hose, Oil Cooler Tube(For Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32921	90467-16022	Clip(For Water Inlet Hose)
32922	32922-25150	Tube, Oil Cooler Outlet, No.1
32922	90445-17077	Hose(For Oil Cooler Inlet)
32923	32923-25010	Clamp, Automatic Transmission Oil Cooler Tube
32923	90462-12076	Clamp, Automatic Transmission Oil Cooler Tube
32923	90949-01993	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	32924-25020	Clamp, Oil Cooler Tube, No.2
32924	32924-25060	Clamp(For Oil Cooler Tube, No.2)
32925	32925-25070	Clamp, Oil Cooler Tube, No.3
32926	32926-60010	Cushion, Oil Cooler Tube(Atm)
32943	32943-25040	Hose, Transmission Oil Cooler, No.1
32943	32943-25050	Hose, Transmission Oil Cooler, No.2
91611	91611-B0816	Bolt
9165160616	91651-60616	BOLT

OEM	Part name	Category
32907-25040	Tube Sub-Assy, Oil Cooler	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32921-25160	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32922-25150	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32923-25010	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32924-25020	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32924-25060	Clamp(For Oil Cooler Tube, No.2)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32925-25070	Clamp, Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32926-60010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32943-25040	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
32943-25050	Hose, Transmission Oil Cooler, No.2	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90407-20004	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90407-20007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90445-17077	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90445-17103	Hose, Oil Cooler Tube(For Inlet)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90462-12076	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
90949-01993	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
91651-60616	BOLT	Oil Cooler & Tube (Atm) ([05.2006 - ] A442E,A442F (0408- )KDY230,280..TB..ATM ; (0605- )KDY2 30..TS..ATM..WT ; (0709- )ATM..1 25T..WT ; (0709- )KDY231..ATM..15T)
