Search › Model › KDY230

KDY230

Toyota DYNA-TOYOACE · 2001 · 3,315 parts · 187 categories

← Back to categories

3,315 items

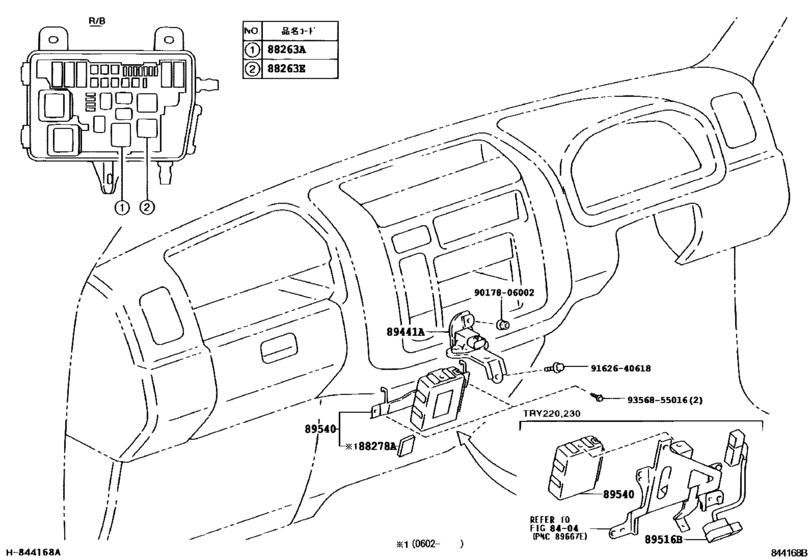

Abs & Vsc ([07.2001 - 09.2007] (0107-0709)) 7

#	OEM	Part name
88263	88263-37010	Relay, Skid Control
88263	88263-37020	Relay, Skid Control No.2
88278	88278-25010	Cushion, Skid Control Computer
89540	89540-25011	Computer Assy, Skid Control
9017806002	90178-06002	NUT FLANGE
9162640618	91626-40618	BOLTWWASHER
9356855016	93568-55016	Screw

OEM	Part name	Category
88263-37010	Relay, Skid Control	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
88263-37020	Relay, Skid Control No.2	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
88278-25010	Cushion, Skid Control Computer	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
89540-25011	Computer Assy, Skid Control	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
90178-06002	NUT FLANGE	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
91626-40618	BOLTWWASHER	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))
93568-55016	Screw	Abs & Vsc ([07.2001 - 09.2007] (0107-0709))

Source: Public OEM parts-catalog data
Variants: 2 / 47
Category: 187
Collected: 2026-08-03
