KDY221

Toyota DYNA-TOYOACE · 2006 · 3,170 parts · 182 categories

3,170 items

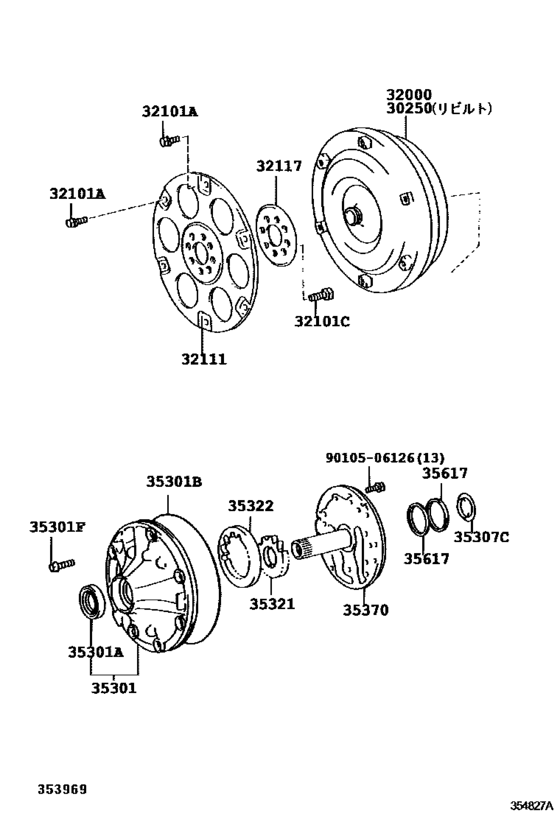

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST) 25

#	OEM	Part name
30250	30250-35240	Converter Assy, Torque, Rebuilt
32000	32000-35240	Converter Assy, Torque
32101	90105-10413	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10546	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-13010	Bolt, Flywheel Setting
32111	32111-71010	Plate, Pump Impeller Drive
32117	32117-60050	Spacer, Drive Plate, Rear
35301	35301-50020	Body Sub-Assy, Front Oil Pump
35301	90311-38087	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-30030	Gear, Front Oil Pump Drive
35321	35321-30040	Gear, Front Oil Pump Drive
35321	35321-30050	Gear, Front Oil Pump Drive
35321	35321-30060	Gear, Front Oil Pump Drive
35321	35321-30070	Gear, Front Oil Pump Drive
35322	35322-30020	Gear, Front Oil Pump Driven
35322	35322-30030	Gear, Front Oil Pump Driven
35322	35322-30040	Gear, Front Oil Pump Driven
35322	35322-30050	Gear, Front Oil Pump Driven
35322	35322-30060	Gear, Front Oil Pump Driven
35370	35370-30060	Shaft Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9010506126	90105-06126	Bolt (For Stator Shaft)

OEM	Part name	Category
30250-35240	Converter Assy, Torque, Rebuilt	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
32000-35240	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
32111-71010	Plate, Pump Impeller Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
32117-60050	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35301-50020	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35321-30030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35321-30040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35321-30050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35321-30060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35321-30070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35322-30020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35322-30030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35322-30040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35322-30050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35322-30060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35370-30060	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90105-06126	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90105-10413	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90105-10546	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90105-13010	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
90311-38087	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A340E,A340F (0408- )KDY22#,23#,28#..ATM..125T,1T..ST)
