| 04474-35090 |
Cylinder Kit, Rear Wheel |

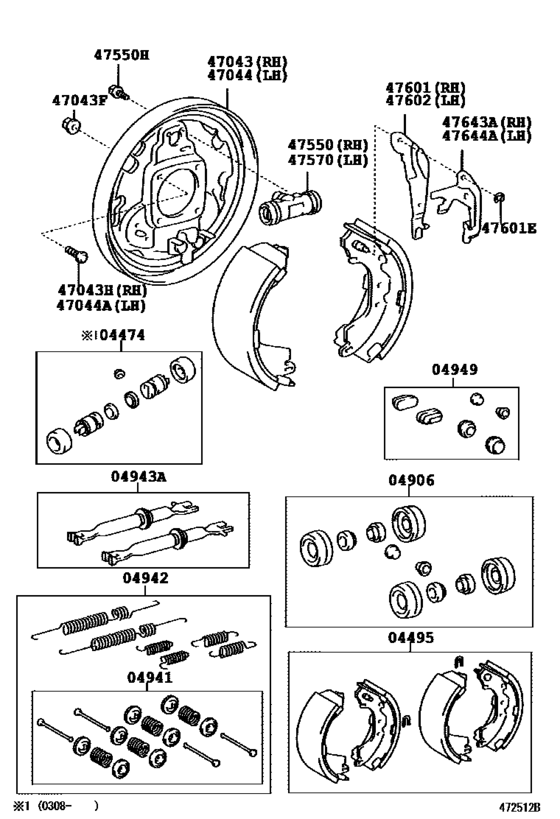

Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04495-25120 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04906-35120 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04941-25040 |
Spring Kit, Rear Brake Shoe Hold Down |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04942-25070 |
Spring Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04943-25020 |
Strut Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 04949-13010 |
Plug Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47043-35160 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47044-35150 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47550-26110 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47611-35040 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47612-35040 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47643-60010 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 47644-60010 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 90114-10002 |
Bolt, Serration (For Rear Axle Flange) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 90179-10041 |
Nut(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
| 96160-00500 |
Ring, E(For Over Center Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([07.2001 - ] (0107- )KDY28#,LY230,RZY230,TRY230..T3,TW3..1 25T,1T ; (0107- )KDY22#,23#,27#, LY220,270,280,RZY 220,TRY220..T3,TW1,TW3..125T,1T) |
