Search › Model › KDN155

KDN155

Toyota HILUX-4RUNNER-TRUCK · 2001 · 2,755 parts · 193 categories

2,755 items

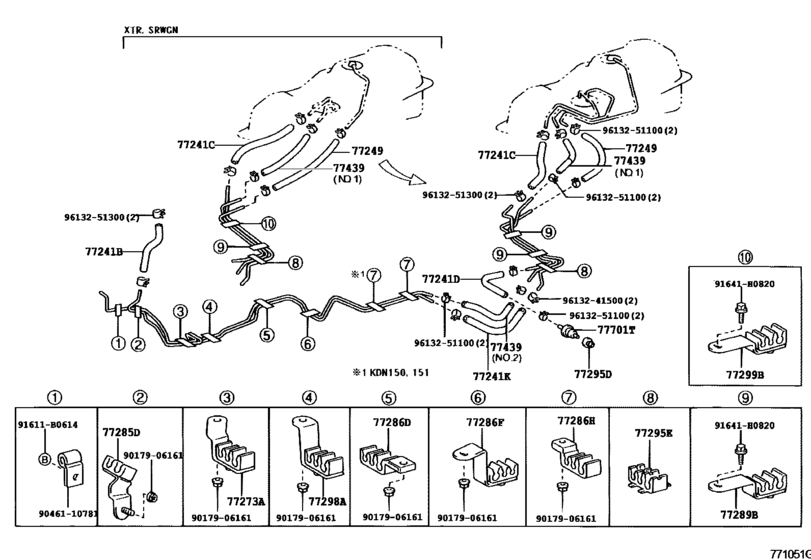

Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190) 25

#	OEM	Part name
77241	77279-35100	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	95332-10040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77241	95337-06020	Hose, Differential Pressure Control
77249	95333-06030	Hose, Fuel
77249	95338-06030	HOSE, FUEL
77273	77273-35030	Clamp, Fuel Tube W/grommet, No.6
77285	77285-35590	Clamp, Fuel Tube, No.1
77286	77286-35090	Clamp, Fuel Tube, No.2
77286	77286-35100	Clamp, Fuel Tube, No.2
77286	77286-35110	Clamp, Fuel Tube, No.3
77289	77289-35030	Clamp, Fuel Tube, No.3
77295	77295-35170	Grommet, Fuel Tube
77295	77295-35290	Grommet, Fuel Tube
77298	77298-35020	Clamp, Fuel Tube, No.4
77439	95333-06040	Hose
77701	90917-10090	Valve, Check (For Main Fuel Tank)
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
91641	91641-H0820	Bolt
9017906161	90179-06161	Bolt, Union(For Clutch Accumulator)
9046110781	90461-10781	Clamp, Brake Tube, No.6
9613241500	96132-41500	Clip(For Ventilation Tube)
9613251100	96132-51100	Clip (For Hose)
9613251300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
77273-35030	Clamp, Fuel Tube W/grommet, No.6	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77279-35100	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77285-35590	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77286-35090	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77286-35100	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77286-35110	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77289-35030	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77295-35170	Grommet, Fuel Tube	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77295-35290	Grommet, Fuel Tube	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
77298-35020	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
90179-06161	Bolt, Union(For Clutch Accumulator)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
90461-10781	Clamp, Brake Tube, No.6	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
90917-10090	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
91641-H0820	Bolt	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95332-10040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95333-06040	Hose	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
96132-41500	Clip(For Ventilation Tube)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([10.2001 - ] (0110- )KDN145,15#,16#,190)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 193
Collected: 2026-08-03
