KDN150

Toyota HILUX-4RUNNER-TRUCK · 2001 · 3,543 parts · 217 categories

3,543 items

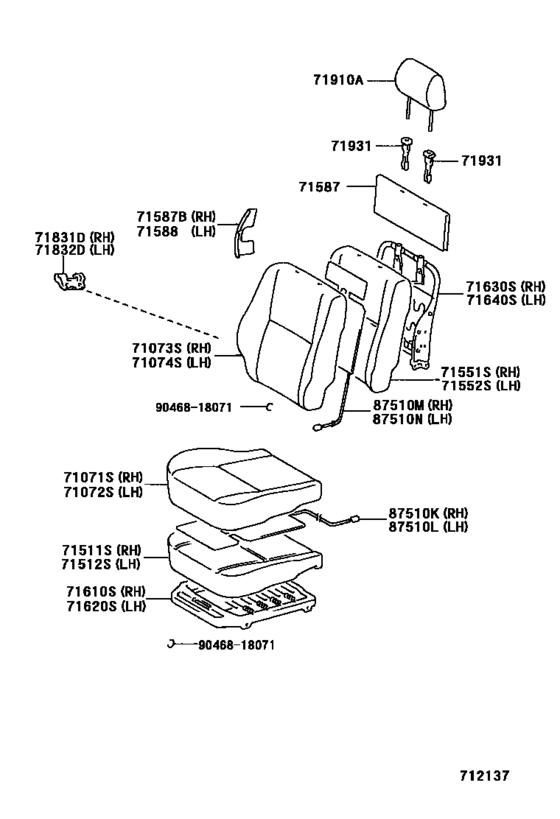

Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB) 28

#	OEM	Part name
71071	71071-3G270-B0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-3G350-B1	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-3G290-B0	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-3G360-B1	Cover, Front Seat Cushion, Rh(For Separate Type)
71073	71073-3G330-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-3G390-B1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-3G340-B1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-3G350-B0	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-3G400-B1	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-3G410-B1	Cover, Front Seat Back, Rh(For Separate Type)
71511	71511-35080	Pad, Front Seat Cushion, Rh(For Separate Type)
71551	71551-35070	Pad, Front Seat Back, Rh(For Separate Type)
71587	71587-35050	Protector, Front Seat Back Edge
71587	71587-60080	Protector, Front Seat Back Edge
71588	71588-60030	Protector, Front Seat Back Edge, No.2
71610	71610-35090	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71610	71610-35100	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71630	71630-35130	Spring Assy, Front Seat Back, Rh(For Separate Type)
71831	71831-35050	Cover, Front Seat Hinge, Rh
71832	71832-35050	Cover, Front Seat Hinge, Lh
71910	71910-35600-B0	Headrest Assy, Front Seat
71910	71910-35610-B0	Headrest Assy, Front Seat
71931	71930-13030-B2	Support, Front Seat Headrest
71931	71931-12040-P6	Support, Front Seat Headrest
87510	87510-35010	Heater Assy, Front Seat Cushion, Rh
87510	87510-35020	Heater Assy, Front Seat Back, Rh
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)

OEM	Part name	Category
71071-3G270-B0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71071-3G290-B0	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71071-3G350-B1	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71071-3G360-B1	Cover, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G330-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G340-B1	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G350-B0	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G390-B1	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G400-B1	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71073-3G410-B1	Cover, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71511-35080	Pad, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71551-35070	Pad, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71587-35050	Protector, Front Seat Back Edge	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71587-60080	Protector, Front Seat Back Edge	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71588-60030	Protector, Front Seat Back Edge, No.2	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71610-35090	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71610-35100	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71630-35130	Spring Assy, Front Seat Back, Rh(For Separate Type)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71831-35050	Cover, Front Seat Hinge, Rh	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71832-35050	Cover, Front Seat Hinge, Lh	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71910-35600-B0	Headrest Assy, Front Seat	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71910-35610-B0	Headrest Assy, Front Seat	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71930-13030-B2	Support, Front Seat Headrest	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
71931-12040-P6	Support, Front Seat Headrest	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
87510-35010	Heater Assy, Front Seat Cushion, Rh	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
87510-35020	Heater Assy, Front Seat Back, Rh	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
90468-18071	Clip (For Front Seat Cushion Cover)	Seat & Seat Track ([08.2001 - ] FRONT SEPARATE SEAT, W(SEAT HEATER) (0108- )KDN150,170 ; (0108- )KDN145..DCB.. IV3 ; (0108- )KDN165..LHD..DCB)
