KDN150

Toyota HILUX-4RUNNER-TRUCK · 2001 · 3,543 parts · 217 categories

← Back to categories

3,543 items

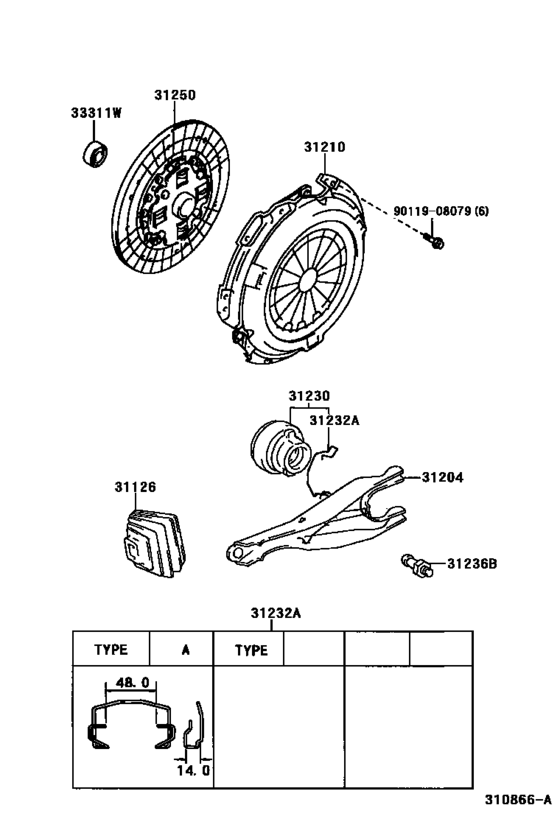

Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150) 18

#	OEM	Part name
31126	31126-60081	Boot, Clutch Release Fork
31204	31204-35070	Fork Sub-Assy, Clutch Release
31204	31204-35071	Fork Sub-Assy, Clutch Release
31204	31204-60090	Fork Sub-Assy, Clutch Release
31210	31210-26160	Cover Assy, Clutch
31210	31210-26164	Cover Assy, Clutch
31210	31210-35122	Cover Assy, Clutch
31230	31230-22100	Bearing Assy, Clutch Release
31230	31230-22101	Bearing Assy, Clutch Release
31232	31232-22020	Clip, Release Bearing Hub
31236	31236-35040	Support, Release Fork
31236	31236-71011	Support, Release Fork
31236	31236-60060	Support, Release Fork
31250	31250-25150	Disc Assy, Clutch
31250	31250-25180	Disc Assy, Clutch
33311	90363-12002	Bearing (For Input Shaft)
33311	90363-12024	Bearing, Radial Ball
9011908079	90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)

OEM	Part name	Category
31126-60081	Boot, Clutch Release Fork	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31204-35070	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31204-35071	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31204-60090	Fork Sub-Assy, Clutch Release	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31210-26160	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31210-26164	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31210-35122	Cover Assy, Clutch	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31230-22100	Bearing Assy, Clutch Release	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31230-22101	Bearing Assy, Clutch Release	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31232-22020	Clip, Release Bearing Hub	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31236-35040	Support, Release Fork	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31236-60060	Support, Release Fork	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31236-71011	Support, Release Fork	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31250-25150	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
31250-25180	Disc Assy, Clutch	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
90119-08079	Bolt(For Transmission Input Damper Cover & Flywheel)	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
90363-12002	Bearing (For Input Shaft)	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
90363-12024	Bearing, Radial Ball	Clutch & Release Fork ([08.2001 - ] (0108- )KDN145,150)
