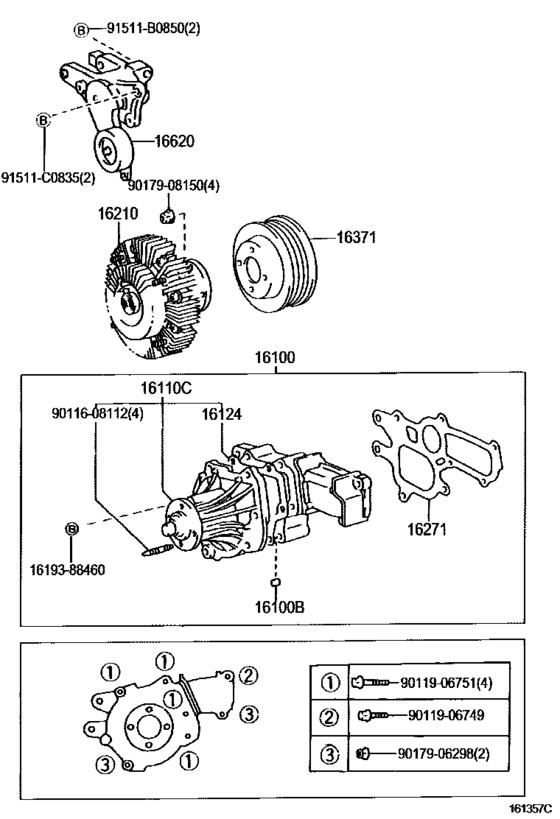

| 16100-69356 |
Pump Assy, Engine Water |
Water Pump ([08.2001 - ] (0108- )) |
| 16100-69357 |
Pump Assy, Engine Water |
Water Pump ([08.2001 - ] (0108- )) |
| 16110-69045 |
Pump Assy, Water, W/o Cover |
Water Pump ([08.2001 - ] (0108- )) |
| 16124-67010 |
Gasket, Water Pump Cover |
Water Pump ([08.2001 - ] (0108- )) |
| 16159-70040 |
Pin, Ring(For Oil Pump Set) |
Water Pump ([08.2001 - ] (0108- )) |
| 16193-88460 |
Bolt, Stud(for Water Pump Cover) |
Water Pump ([08.2001 - ] (0108- )) |
| 16210-30010 |
Coupling Assy, Fluid |
Water Pump ([08.2001 - ] (0108- )) |
| 16210-30011 |
Coupling Assy, Fluid |
Water Pump ([08.2001 - ] (0108- )) |
| 16271-67020 |
Gasket, Water Pump |
Water Pump ([08.2001 - ] (0108- )) |
| 16371-30020 |
Pulley, Fan |
Water Pump ([08.2001 - ] (0108- )) |
| 16620-30020 |
Tensioner Assy, V-Ribbed Belt |
Water Pump ([08.2001 - ] (0108- )) |
| 16620-30030 |
Tensioner Assy, V-Ribbed Belt |
Water Pump ([08.2001 - ] (0108- )) |
| 16620-30031 |
Tensioner Assy, V-Ribbed Belt |
Water Pump ([08.2001 - ] (0108- )) |
| 90116-08112 |
Bolt, Stud(For Water Pump Coupling) |
Water Pump ([08.2001 - ] (0108- )) |
| 90119-06749 |
BOLT WWASHER |
Water Pump ([08.2001 - ] (0108- )) |
| 90119-06751 |
BOLT WWASHER |
Water Pump ([08.2001 - ] (0108- )) |
| 90179-06298 |
NUT |
Water Pump ([08.2001 - ] (0108- )) |
| 90179-08150 |
NUT |
Water Pump ([08.2001 - ] (0108- )) |
| 91511-B0850 |
Bolt |
Water Pump ([08.2001 - ] (0108- )) |
| 91511-C0835 |
Bolt(For Transaxle Case & Engine Setting) |
Water Pump ([08.2001 - ] (0108- )) |
