KDJ95

Toyota LAND-CRUISER-PRADO · 2000 · 5,753 parts · 242 categories
KDJ95 ×

← Back to categories

5,753 items

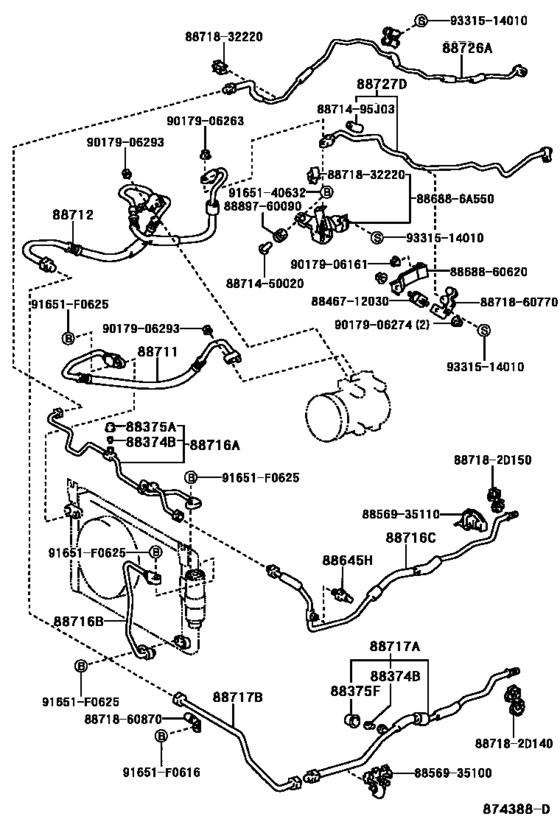

Heating & Air Conditioning - Cooler Piping ([08.2000 - ] DUAL AIR CONDITIONER---FRONT (0008- )KDJ9#..RHD) 44
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88645 88645-60030 Switch, Pressure No.1
88711 88711-35580 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-35560 Hose, Cooler Refrigerant Suction, No.1
88712 88712-6A140 Hose, Cooler Refrigerant Suction, No.1
88716 88716-6A650 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6A700 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6A690 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6A801 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6B290 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6B300 Pipe, Cooler Refrigerant Liquid, C
88716 88716-6B310 Pipe, Cooler Refrigerant Liquid, C
88717 88717-35150 Pipe, Cooler Refrigerant Suction, A
88717 88717-6A450 Pipe, Cooler Refrigerant Suction, A
88717 88717-6A030 Pipe, Cooler Refrigerant Suction, B
88717 88717-6A040 Pipe, Cooler Refrigerant Suction, B
88726 88716-6B210 Pipe, Cooler Refrigerant Liquid, A
88727 88717-6A400 Pipe, Cooler Refrigerant Suction, D
91651 91651-F0616 BOLT
91651 91651-F0625 BOLT WWASHER
886886 88688-6A550 Bracket, Cooler Diaphragm
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8871495 88714-95J03 Insulator, Cooler Refrigerant Hose, No.1
8846712030 88467-12030 Cushion, Cooler Condenser, No.1
8856935100 88569-35100 Clamp (for Cooler Relay)
8856935110 88569-35110 Clamp (for Cooler Relay)
8868860620 88688-60620 Bracket, Cooler Diaphragm
8871450020 88714-50020 Hose, Cooler Refrigerant Liquid, No.1
8871832220 88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2
8871860770 88718-60770 Pipe, Cooler Refrigerant Suction, No.2
8871860870 88718-60870 Pipe, Cooler Refrigerant Suction, No.2
8889760090 88897-60090 Valve, Cooler Magnet
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9017906263 90179-06263 Nut (For Rear Wiper Arm Setting)
9017906263 90179-06178 Nut (For Rear Wiper Arm Setting)
9017906274 90179-06274 Nut
9017906293 90179-06293 NUT
9165140632 91651-40632 New Genuine Part
9331514010 93315-14010 SCREW
