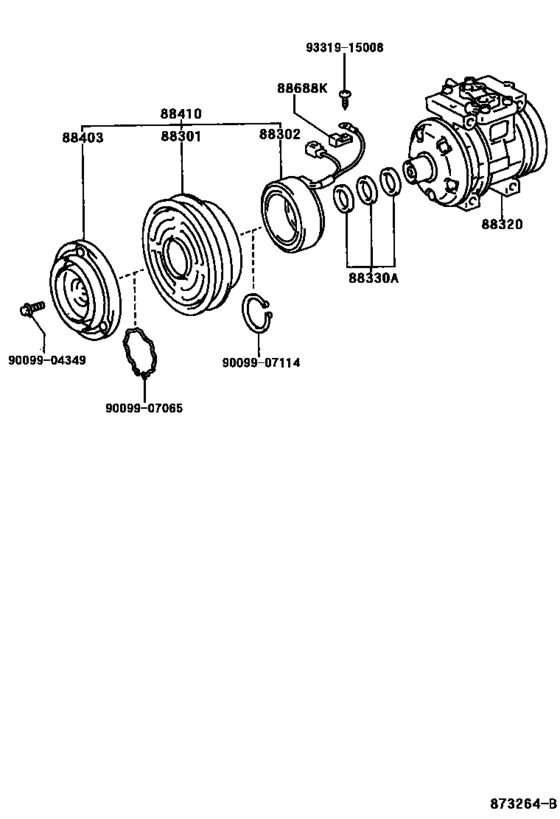

| 88320-35670 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88335-14020 |
Washer |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88403-32010 |
Hub Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88410-28200 |
Clutch Assy, Magnet |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88411-44010 |
Stator Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88412-28090 |
Rotor Sub-Assy, Magnet Clutch |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 88569-35170 |
Bracket, Cooler Compressor |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-04349 |
Bolt, Magnet Clutch Setting |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-04924 |
Bolt, Service Valve |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-04958 |
Bolt, Through |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-07065 |
SNAP RING |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-07114 |
Ring, Snap (For Magnet Clutch) |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 90099-08058 |
Pin, Cylinder Block |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
| 93319-15008 |
SCREW |
Heating & Air Conditioning - Compressor ([04.1996 - ] (9604- )) |
