| 04226-30020 |
Valve Kit, Suction Control |

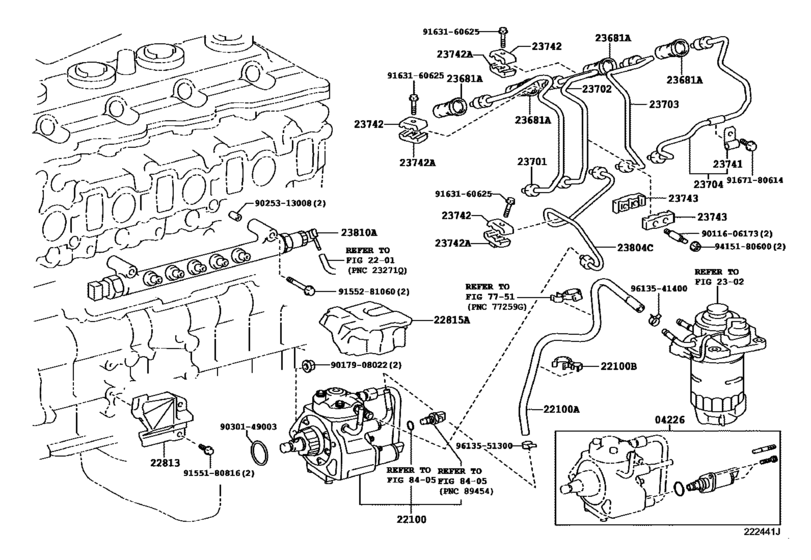

Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 22100-30140 |
Pump Assy, Injection Or Supply |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 22813-30010 |
Protector, Injection Pump, No.1 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 22815-30010 |
Insulator, Injection Pump |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23271-30260 |
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23271-30300 |
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23681-30010 |
Seal, Nozzle Holder |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23701-30060 |
Pipe Sub-Assy, Injection, No.1 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23702-30060 |
Pipe Sub-Assy, Injection, No.2 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23703-30060 |
Pipe Sub-Assy, Injection, No.3 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23704-39055 |
Pipe Sub-Assy, Injection, No.4 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23741-30010 |
Clamp, Injection Pipe, No.1 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23742-27010 |
Clamp, Injection Pipe, No.2 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23742-30040 |
Clamp, Injection Pipe, No.3 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23742-58020 |
Clamp, Injection Pipe, No.2 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23743-30011 |
Clamp, Injection Pipe, No.3 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23804-30060 |
Pipe Sub-Assy, Fuel Inlet |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 23810-30100 |
Rail Assy, Common |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 90116-06173 |
BOLT STUD |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 90179-08022 |
NUT |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 90253-13008 |
Pin, Ring(For Crankshaft Bearing Cap Set) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 90301-49003 |
Gasket, Injection Pump |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 90464-00836 |
Clamp, Fuel Hose, No.1 |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 91551-80816 |
Bolt(For Manual Transmission Oil Separator) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 91552-81060 |
Bolt, No.3(For Alternator) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 91631-60625 |
BOLT WWASHER |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 91671-80614 |
Bolt (For Transmission Control Cable Bracket) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 96135-41400 |
Clip(For Water By-Pass Hose No.1) |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
| 96135-51300 |
Clamp, Hose |
Injection Pump Assembly ([08.2009 - ] (0908- )1KDFTV) |
