KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

← Back to categories

5,584 items

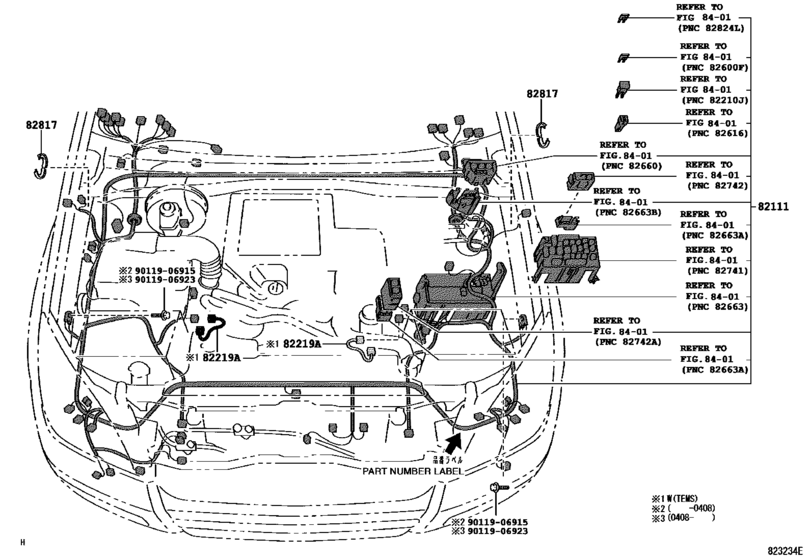

Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- )) 15

#	OEM	Part name
82111	82111-60A40	Wire, Engine Room Main
82111	82111-60A41	Wire, Engine Room Main
82111	82111-60A42	Wire, Engine Room Main
82111	82111-60B40	Wire, Engine Room Main
82111	82111-6A271	Wire, Engine Room Main
82111	82111-6A272	Wire, Engine Room Main
82111	82111-6A273	Wire, Engine Room Main
82111	82111-6A291	Wire, Engine Room Main
82111	82111-6A292	Wire, Engine Room Main
82111	82111-6A293	Wire, Engine Room Main
82111	82111-6A301	Wire, Engine Room Main
82111	82111-6A302	Wire, Engine Room Main
82817	82817-32840	Protector, Wiring Harness, No.1
9011906915	90119-06915	BOLT W-WASHER
9011906923	90119-06923	BOLT WWASHER

OEM	Part name	Category
82111-60A40	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-60A41	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-60A42	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-60B40	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A271	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A272	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A273	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A291	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A292	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A293	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A301	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82111-6A302	Wire, Engine Room Main	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
82817-32840	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))
90119-06923	BOLT WWASHER	Wiring & Clamp ([09.2002 - ] ENGINE ROOM (0209- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 246
Collected: 2026-08-02
