KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

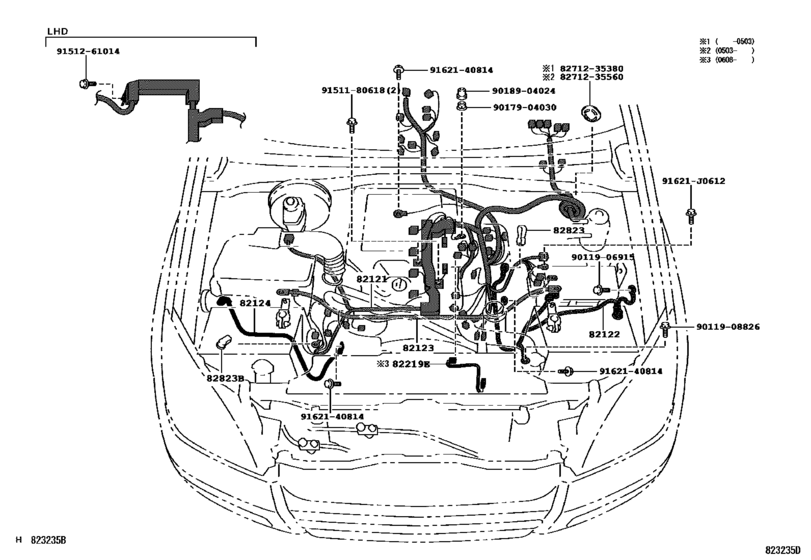

Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#) 24

#	OEM	Part name
82121	82121-6A701	Wire, Engine
82121	82121-6A702	Wire, Engine
82121	82121-6A703	Wire, Engine
82121	82121-6A691	Wire, Engine
82121	82121-6A692	Wire, Engine
82121	82121-6A693	Wire, Engine
82122	82122-60420	Wire, Engine, No.2
82122	82122-60430	Wire, Engine, No.2
82123	82123-60240	Wire, Engine, No.3
82124	82124-60120	Wire, Engine, No.4
82219	27148-30010	Wire, Sensor
82823	82823-35060	Cap, Terminal, No.1
82823	82823-35070	Cap, Terminal, No.1
82823	82823-22050	Cap, Terminal, No.1
91621	91621-J0612	BOLT W-WASHER
8271235380	82712-35380	Hose, Suction
8271235560	82712-35560	Hose, Suction
9011906915	90119-06915	BOLT W-WASHER
9011908826	90119-08826	BOLT
9017904030	90179-04030	Nut, Connecting(For Glow Plug)
9018904024	90189-04024	Grommet, Screw(For Glow Plug)
9151180618	91511-80618	New Genuine Part
9151261014	91512-61014	BOLT FLANGE
9162140814	91621-40814	Bolt

OEM	Part name	Category
27148-30010	Wire, Sensor	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A691	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A692	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A693	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A701	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A702	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82121-6A703	Wire, Engine	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82122-60420	Wire, Engine, No.2	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82122-60430	Wire, Engine, No.2	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82123-60240	Wire, Engine, No.3	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82124-60120	Wire, Engine, No.4	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82712-35380	Hose, Suction	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82712-35560	Hose, Suction	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82823-22050	Cap, Terminal, No.1	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82823-35060	Cap, Terminal, No.1	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
82823-35070	Cap, Terminal, No.1	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
90119-08826	BOLT	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
90179-04030	Nut, Connecting(For Glow Plug)	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
90189-04024	Grommet, Screw(For Glow Plug)	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
91511-80618	New Genuine Part	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
91512-61014	BOLT FLANGE	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
91621-40814	Bolt	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
91621-J0612	BOLT W-WASHER	Wiring & Clamp ([09.2002 - ] ENGINE (0209- )KDJ12#)
