KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

← Back to categories

5,584 items

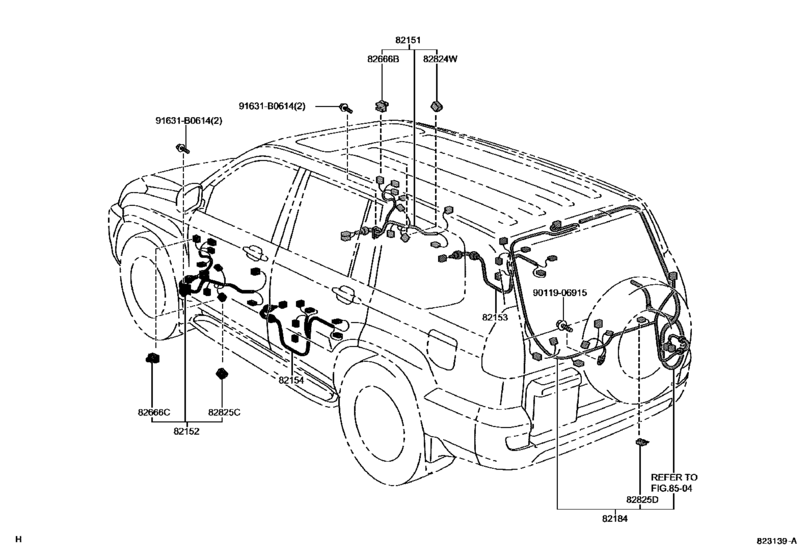

Wiring & Clamp ([09.2002 - ] DOOR (0209- )) 13

#	OEM	Part name
82151	82151-60460	Wire, Front Door, Rh
82151	82151-60470	Wire, Front Door, Rh
82151	82151-60480	Wire, Front Door, Rh
82151	82151-60490	Wire, Front Door, Rh
82152	82152-60390	Wire, Front Door, Lh
82152	82152-60400	Wire, Front Door, Lh
82152	82152-60410	Wire, Front Door, Lh
82152	82152-60420	Wire, Front Door, Lh
82184	82184-60230	Wire, Back Door, No.1
82666	82666-22080	Holder, Connector No.2
82824	82824-22070	Connector, Wiring Harness
91631	91631-B0614	BOLT WWASHER
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82151-60460	Wire, Front Door, Rh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82151-60470	Wire, Front Door, Rh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82151-60480	Wire, Front Door, Rh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82151-60490	Wire, Front Door, Rh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82152-60390	Wire, Front Door, Lh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82152-60400	Wire, Front Door, Lh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82152-60410	Wire, Front Door, Lh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82152-60420	Wire, Front Door, Lh	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82184-60230	Wire, Back Door, No.1	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82666-22080	Holder, Connector No.2	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
82824-22070	Connector, Wiring Harness	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))
91631-B0614	BOLT WWASHER	Wiring & Clamp ([09.2002 - ] DOOR (0209- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 246
Collected: 2026-08-02
