Search › Model › KDJ125
KDJ125

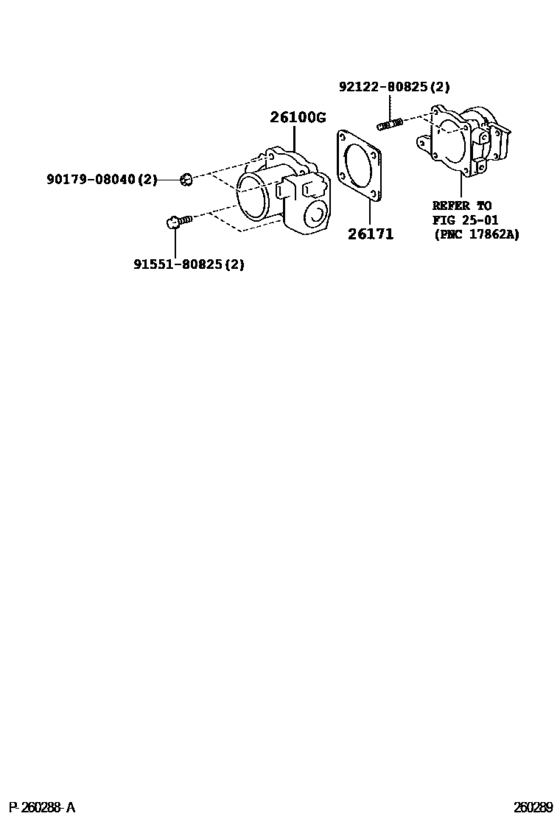

Venturi ([08.2006 - ] (0608- )1KDFTV) 6
| # | OEM | Part name |
|---|---|---|
| 26100 | 26100-30050 | Body Assy, Diesel Throttle |
| 26100 | 26100-30070 | Body Assy, Diesel Throttle |
| 26171 | 26171-30020 | Gasket, Venturi |
| 9017908040 | 90179-08040 | Nut, Cap(For Cylinder Head Cover) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| 9212280825 | 92122-80825 | Bolt, Stud(For Manifold To Cylinder Head) |
| OEM | Part name | Category |
|---|---|---|
| 26100-30050 | Body Assy, Diesel Throttle | Venturi ([08.2006 - ] (0608- )1KDFTV) |
| 26100-30070 | Body Assy, Diesel Throttle | Venturi ([08.2006 - ] (0608- )1KDFTV) |
| 26171-30020 | Gasket, Venturi | Venturi ([08.2006 - ] (0608- )1KDFTV) |
| 90179-08040 | Nut, Cap(For Cylinder Head Cover) | Venturi ([08.2006 - ] (0608- )1KDFTV) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Venturi ([08.2006 - ] (0608- )1KDFTV) |
| 92122-80825 | Bolt, Stud(For Manifold To Cylinder Head) | Venturi ([08.2006 - ] (0608- )1KDFTV) |
