Search › Model › KDJ125
KDJ125

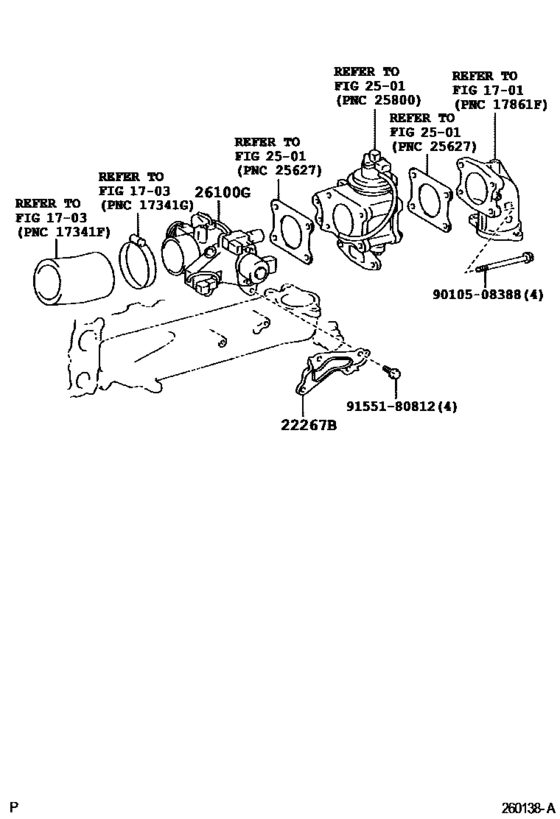

Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) 5
| # | OEM | Part name |
|---|---|---|
| 22267 | 22267-30010 | Bracket, Throttle Body |
| 26100 | 26100-30050 | Body Assy, Diesel Throttle |
| 26100 | 26100-30070 | Body Assy, Diesel Throttle |
| 9010508388 | 90105-08388 | New Genuine Part |
| 9155180812 | 91551-80812 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 22267-30010 | Bracket, Throttle Body | Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) |
| 26100-30050 | Body Assy, Diesel Throttle | Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) |
| 26100-30070 | Body Assy, Diesel Throttle | Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) |
| 90105-08388 | New Genuine Part | Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) |
| 91551-80812 | BOLT FLANGE | Venturi ([08.2004 - 08.2006] (0408-0608)1KDFTV) |
