KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

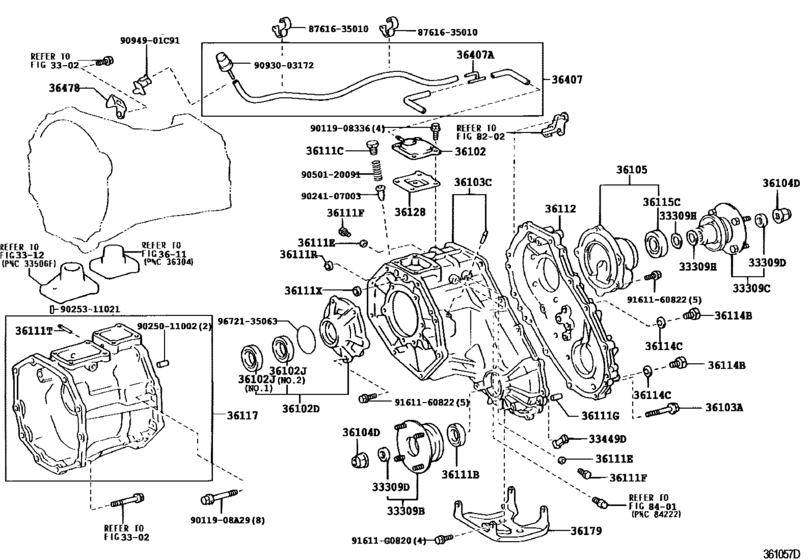

Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F) 53

#	OEM	Part name
33309	33309-35110	Flange Sub-Assy, Output Shaft Companion
33309	33309-35112	Flange Sub-Assy, Output Shaft Companion
33309	90311-41013	Seal, Oil (For Transfer Case)
33309	90311-41017	Seal, Oil (For Transfer Case)
33309	33309-35111	Flange Sub-Assy, Output Shaft Companion
33309	33309-35113	Flange Sub Assembly Out
33309	33309-35120	Flange Sub-Assy, Output Shaft Companion
33309	90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)
33309	36275-35030	Washer, Transfer Output Shaft
33449	33449-32020	Magnet, Transmission
36102	36102-35040	Cover Sub-Assy, Transfer Case
36102	36102-35080	Retainer Sub-Assy, Transfer Rh Bearing
36102	90311-43007	Seal, Oil(For Transfer Case Adapter Rear)
36102	90311-43008	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36103	90119-08A28	Bolt (For Transfer Case)
36103	36103-60350	Case, Transfer, Front
36104	90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)
36105	36105-60040	Housing Sub-Assy, Transfer Extension, Front
36111	90311-41010	Seal, Oil (For Transfer Case)
36111	90311-41012	Seal, Oil (For Transfer Case)
36111	90341-14012	Plug (For Transfer Case)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90341-18006	Plug (No magnet)
36111	90250-10214	Pin, Straight(For End Plate)
36111	90331-25005	Plug, Tight (For Transfer Case)
36111	90441-05001	Tube (For Transfer Case)
36111	90311-15008	Seal, Oil (For Transfer Case)
36112	36112-60170	Case, Transfer, Rear
36112	36112-60180	Case, Transfer, Rear
36115	90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115	90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)
36117	33102-60120	Adapter, Transfer
36117	33102-60121	Adapter, Transfer
36117	90119-08213	Bolt, W/washer(For Transmission Case Cover)
36128	36128-35060	Deflector Sub-Assy, Breather Oil
36179	36179-35020	Protector, Transfer Case Lower
36179	36179-60030	Protector, Transfer Case Lower
36407	36407-60140	Hose Sub-Assy, Transfer Breather
36407	90413-04008	Way, 3(For Transfer Breather Hose)
36478	36478-60010	Bracket, Transfer Breather
91611	91611-G0820	Bolt
9011908	90119-08A29	Bolt(For Head To Camshaft Bearing Cap)
9094901	90949-01C91	Clamp, No.6(For Vacuum Hose)
8761635010	87616-35010	Clamp, Cooling Unit Case
9011908336	90119-08336	BOLT
9024107003	90241-07003	Pin, Slotted Spring (For Transfer Case)
9025011002	90250-11002	New Genuine Part
9025311021	90253-11021	Pin, Ring
9050120091	90501-20091	Spring, Compression (For Transfer Case)
9093003172	90930-03172	PLUG BREATHER
9161160822	91611-60822	Bolt
9672135063	96721-35063	Ring, O

OEM	Part name	Category
33102-60120	Adapter, Transfer	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33102-60121	Adapter, Transfer	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33309-35110	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33309-35111	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33309-35112	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33309-35113	Flange Sub Assembly Out	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33309-35120	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
33449-32020	Magnet, Transmission	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36102-35040	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36102-35080	Retainer Sub-Assy, Transfer Rh Bearing	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36103-60350	Case, Transfer, Front	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36105-60040	Housing Sub-Assy, Transfer Extension, Front	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36112-60170	Case, Transfer, Rear	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36112-60180	Case, Transfer, Rear	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36128-35060	Deflector Sub-Assy, Breather Oil	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36179-35020	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36179-60030	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36275-35030	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36407-60140	Hose Sub-Assy, Transfer Breather	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
36478-60010	Bracket, Transfer Breather	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
87616-35010	Clamp, Cooling Unit Case	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90119-08213	Bolt, W/washer(For Transmission Case Cover)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90119-08336	BOLT	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90119-08A28	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90119-08A29	Bolt(For Head To Camshaft Bearing Cap)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90241-07003	Pin, Slotted Spring (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90250-11002	New Genuine Part	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90253-11021	Pin, Ring	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-15008	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41010	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41012	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41013	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41017	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-43007	Seal, Oil(For Transfer Case Adapter Rear)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90311-43008	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90331-25005	Plug, Tight (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90341-14012	Plug (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90413-04008	Way, 3(For Transfer Breather Hose)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90430-18008	Gasket	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90441-05001	Tube (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90501-20091	Spring, Compression (For Transfer Case)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90930-03172	PLUG BREATHER	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
90949-01C91	Clamp, No.6(For Vacuum Hose)	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
91611-60822	Bolt	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
91611-G0820	Bolt	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
96721-35063	Ring, O	Transfer Case & Extension Housing ([08.2004 - ] W(ABS & VSC & ACTIVE TRC) (0408- )6F)
