Search › Model › KDJ125

KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

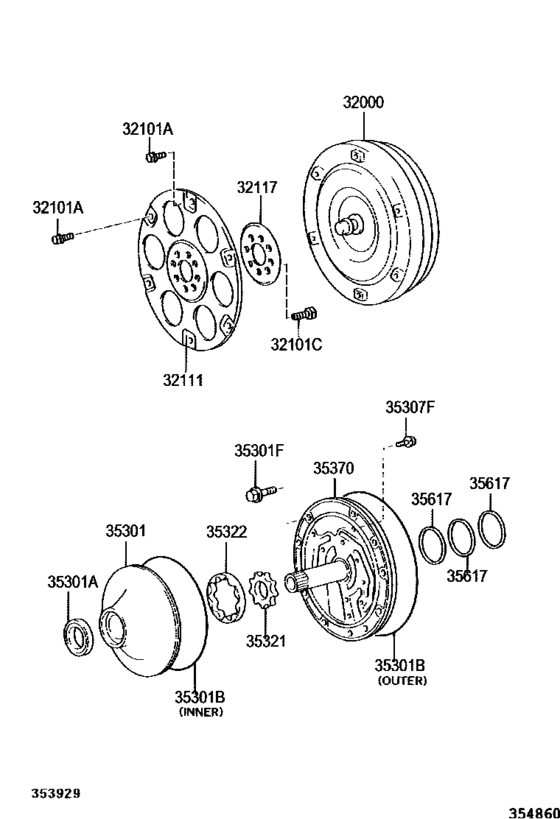

Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC) 32

#	OEM	Part name
32000	32000-60270	Converter Assy, Torque
32101	90105-10413	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10414	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10546	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-13010	Bolt, Flywheel Setting
32111	32111-35030	Plate, Pump Impeller Drive
32111	32111-71010	Plate, Pump Impeller Drive
32117	32117-60050	Spacer, Drive Plate, Rear
35301	35301-60030	Body Sub-Assy, Front Oil Pump
35301	90311-38083	Seal, Oil (For Front Oil Pump)
35301	90301-99139	Ring, O (For Front Oil Pump Body)
35301	90301-99148	Ring, O (For Front Oil Pump Body)
35301	90105-08451	Bolt (For Front Oil Pump Setting)
35301	91511-K0840	Bolt(For Crankshaft Bearing Cap Set)
35307	90148-60079	Bolt (For Stator Shaft)
35321	35321-50010	Gear, Front Oil Pump Drive
35321	35321-50020	Gear, Front Oil Pump Drive
35321	35321-50030	Gear, Front Oil Pump Drive
35321	35321-50040	Gear, Front Oil Pump Drive
35321	35321-50050	Gear, Front Oil Pump Drive
35321	35321-50060	Gear, Front Oil Pump Drive
35321	35321-50070	Gear, Front Oil Pump Drive
35322	35322-50010	Gear, Front Oil Pump Driven
35322	35322-50020	Gear, Front Oil Pump Driven
35322	35322-50030	Gear, Front Oil Pump Driven
35322	35322-50040	Gear, Front Oil Pump Driven
35322	35322-50050	Gear, Front Oil Pump Driven
35322	35322-50060	Gear, Front Oil Pump Driven
35322	35322-50070	Gear, Front Oil Pump Driven
35370	35370-50030	Shaft Assy, Stator
35617	35617-50030	Ring, Clutch Drum Oil Seal
35617	35617-60020	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-60270	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
32111-35030	Plate, Pump Impeller Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
32111-71010	Plate, Pump Impeller Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
32117-60050	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35301-60030	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35321-50070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35322-50070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35370-50030	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35617-50030	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
35617-60020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90105-08451	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90105-10413	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90105-10414	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90105-10546	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90105-13010	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90148-60079	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90301-99139	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90301-99148	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
90311-38083	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
91511-K0840	Bolt(For Crankshaft Bearing Cap Set)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.2004 - ] A750F (0408- )KDJ12#..5FC)
