KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

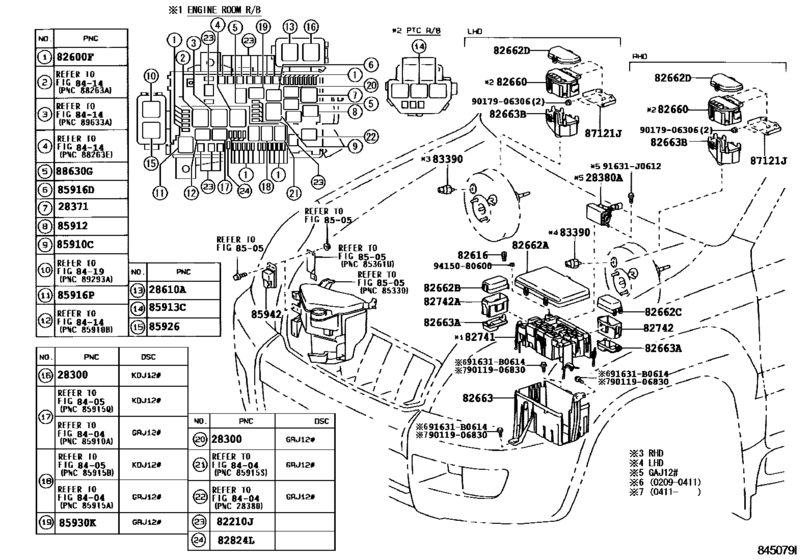

Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- )) 41

#	OEM	Part name
28300	90987-02025	Relay
28610	28610-54360	Relay Assy, Glow Plug
82210	90982-08202	Fusible Link
82210	90982-08203	Fusible Link
82210	90982-08274	Fusible Link
82210	90982-08281	Fusible Link
82210	90982-08282	Fusible Link
82210	90982-08283	Fusible Link
82210	90982-08286	Fusible Link
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82616	82616-20010	Puller, Fuse
82660	82660-42020	Block Assy, Relay, Engine Room
82662	82662-60170	Cover, Relay Block, Upper, No.1
82662	82662-60331	Cover, Relay Block, Upper, No.1
82662	82662-3D150	Cover, Relay Block, Upper, No.2
82662	82662-3D140	Cover, Relay Block, Upper, No.3
82662	82662-42140	Cover, Relay Block, Upper, No.4
82663	82663-35090	Cover, Relay Block, Lower
82663	82663-35100	Cover, Relay Block, Lower, No.2
82663	82663-60050	Cover, Relay Block, Lower, No.2
82741	82741-35110	Block, Engine Room Relay
82742	82742-35030	Block, Engine Room Relay, No.2
82742	82742-35050	Block, Engine Room Relay, No.5
82824	82824-20140	Connector, Wiring Harness
83390	83390-30100	Switch Assy, Vacuum Warning
85910	90987-04010	Relay Assy (For Heater Blower Motor)
85912	90987-04004	Relay, Starter Cut
85916	90987-02027	Relay
85942	85942-60020	Relay, Headlamp Cleaner Control
87121	87121-60060	Bracket, Heater
88630	90987-02028	Relay, Water Pump
91631	91631-B0614	BOLT WWASHER
91631	91631-J0612	BRACKET
9011906830	90119-06830	BOLT WWASHER
9017906306	90179-06306	NUT
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
28610-54360	Relay Assy, Glow Plug	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82616-20010	Puller, Fuse	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82660-42020	Block Assy, Relay, Engine Room	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82662-3D140	Cover, Relay Block, Upper, No.3	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82662-3D150	Cover, Relay Block, Upper, No.2	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82662-42140	Cover, Relay Block, Upper, No.4	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82662-60170	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82662-60331	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82663-35090	Cover, Relay Block, Lower	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82663-35100	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82663-60050	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82741-35110	Block, Engine Room Relay	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82742-35030	Block, Engine Room Relay, No.2	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82742-35050	Block, Engine Room Relay, No.5	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
82824-20140	Connector, Wiring Harness	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
83390-30100	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
85942-60020	Relay, Headlamp Cleaner Control	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
87121-60060	Bracket, Heater	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90119-06830	BOLT WWASHER	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90179-06306	NUT	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08202	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08203	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08274	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08281	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08282	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08283	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-08286	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09008	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09009	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09010	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09011	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09012	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90982-09013	Fusible Link	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90987-02025	Relay	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90987-02027	Relay	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
90987-04010	Relay Assy (For Heater Blower Motor)	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
91631-B0614	BOLT WWASHER	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
91631-J0612	BRACKET	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
94150-80600	NUT FLANGE	Switch & Relay & Computer ([09.2002 - ] ENGINE ROOM (0209- ))
