KDJ125

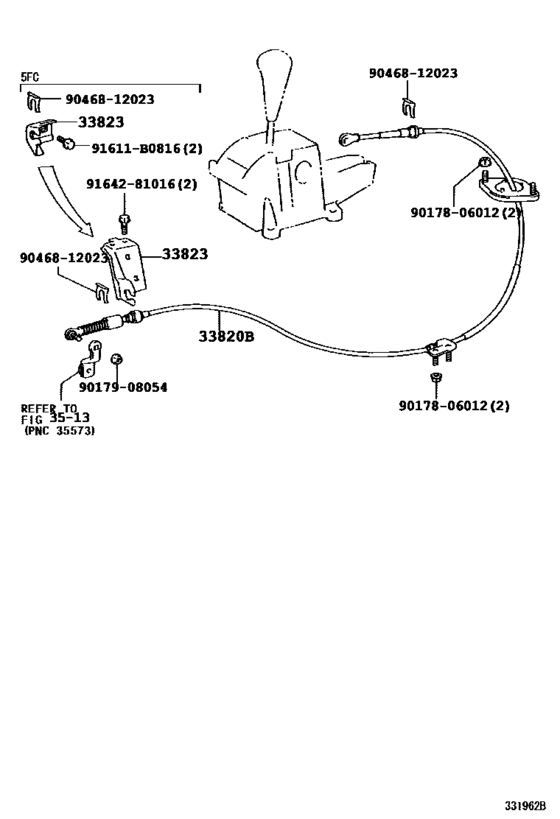

Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) 7
| # | OEM | Part name |
|---|---|---|
| 33820 | 33820-60080 | Cable Assy, Transmission Control |
| 33823 | 33823-60020 | Bracket, Transmission Control Cable, No.1 |
| 91611 | 91611-B0816 | Bolt |
| 9017806012 | 90178-06012 | NUT FLANGE |
| 9017908054 | 90179-08054 | Nut (For Connecting Rod Swivel) |
| 9046812023 | 90468-12023 | CLIP |
| 9164281016 | 91642-81016 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 33820-60080 | Cable Assy, Transmission Control | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 33823-60020 | Bracket, Transmission Control Cable, No.1 | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 90178-06012 | NUT FLANGE | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 90179-08054 | Nut (For Connecting Rod Swivel) | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 90468-12023 | CLIP | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 91611-B0816 | Bolt | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
| 91642-81016 | Bolt (For Transmission Control Cable Bracket) | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM) |
