Search › Model › KDJ125

KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories
KDJ125 ×

← Back to categories

5,584 items

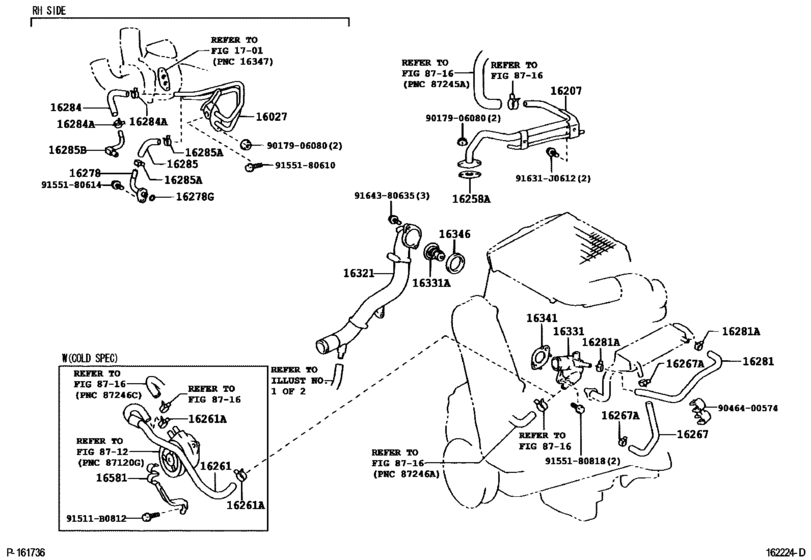

Radiator & Water Outlet ([08.2004 - 08.2006] (0408-0608)1KDFTV) 43
#OEMPart name
16027 16027-30041 Pipe Sub-Assy, Turbo Water, No.1
16027 16027-30070 Pipe Sub-Assy, Turbo Water, No.1
16207 16207-30050 Pipe Sub-Assy, Water By-Pass, No.2
16207 16207-30140 Pipe Sub-Assy, Water By-Pass, No.2
16258 16258-67010 Gasket(For Heater Return)
16261 16261-30040 Hose, Water By-Pass
16261 16261-30090 Hose, Water By-Pass
16261 90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 16267-30030 Hose, Water By-Pass, No.3
16267 16267-30090 Hose, Water By-Pass, No.3
16267 90467-19022 Clip(For Ventilation Hose No.2)
16278 16278-67010 Pipe, Water By-Pass, No.2
16278 96761-24010 Ring, O(For Water By-Pass No.2 Pipe)
16281 16281-30030 Hose, Water By-Pass, No.4
16281 16281-30070 Hose, Water By-Pass, No.4
16284 16284-30010 Hose, Turbo Water, No.1
16284 16284-30070 Hose, Turbo Water, No.1
16284 90467-13073 Clamp Or Clip, Hose(For Water By-Pass Hose)
16284 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16284 90467-15022 Clip Or Clamp(For Ventilation Hose)
16285 16285-30100 Hose, Turbo Water, No.2
16285 16285-67010 Hose, Turbo Water, No.2
16285 90405-08029 Union(For Turbo Water Hose No.2)
16285 90405-10044 Union(For Turbo Water Hose No.2)
16321 16321-30031 Inlet, Water
16321 16321-30080 Inlet, Water
16321 16321-30032 Inlet, Water
16321 16321-30033 Inlet, Water
16331 16304-30020 Outlet, Water
16331 16331-30061 Outlet, Water
16331 90916-03118 Thermostat - *WAX 82-95C
16341 16341-30020 Gasket, Water Outlet
16346 16346-67010 Gasket, Thermostat
16346 16346-30010 Gasket, Thermostat
16581 16581-30050 Clamp, Hose(For Water Hose)
91511 91511-B0812 BOLT FLANGE
91631 91631-J0612 BRACKET
9017906080 90179-06080 NUT
9046400574 90464-00574 Clamp Or Clip(For Water By-Pass Hose)
9155180610 91551-80610 BOLT FLANGE
9155180614 91551-80614 Bolt(For Vacuum Transmitting Pipe)
9155180818 91551-80818 Bolt, Union(For Clutch Master Cylinder)
9164380635 91643-80635 New Genuine Part
