KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

← Back to categories

5,584 items

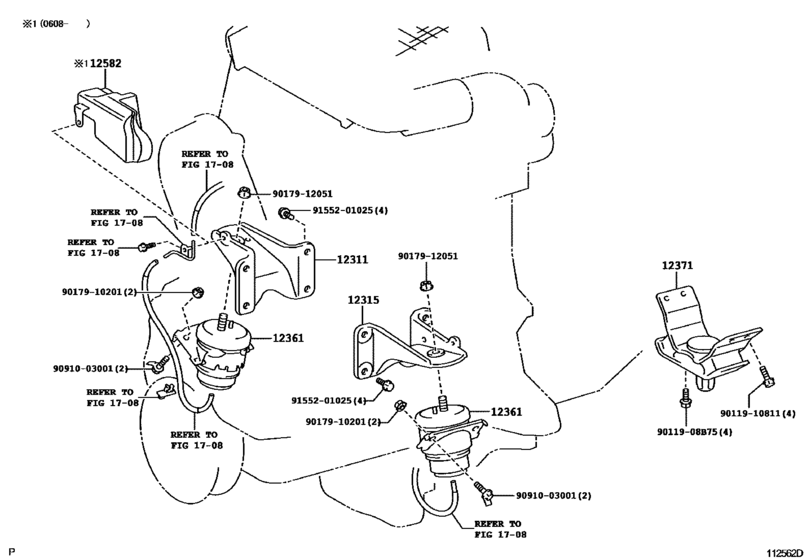

Mounting ([09.2002 - ] (0209- )1KDFTV) 17

#	OEM	Part name
12311	12311-30060	Bracket, Engine Mounting, Front No.1 Rh
12311	12311-30061	Bracket, Engine Mounting, Front No.1 Rh
12361	12361-30050	Insulator, Engine Mounting, Front
12361	12361-30141	Insulator, Engine Mounting, Front
12361	12361-30143	Insulator, Engine Mounting, Front
12361	12361-30051	Insulator, Engine Mounting, Front
12371	12371-30060	Insulator, Engine Mounting, Rear No.1
12371	12371-30080	Insulator, Engine Mounting, Rear No.1
12371	12371-30070	Insulator, Engine Mounting, Rear No.1
12371	12371-30090	Insulator, Engine Mounting, Rear No.1
12582	12582-30020	Insulator, Cylinder Block, No.2
9011908	90119-08B75	BOLT WWASHER
9011910811	90119-10811	Bolt, With Washer
9017910201	90179-10201	NUT
9017912051	90179-12051	Nut(For Front Stabilizer Link)
9091003001	90910-03001	BOLT, ENGINE MOUNT
9155201025	91552-01025	New Genuine Part

OEM	Part name	Category
12311-30060	Bracket, Engine Mounting, Front No.1 Rh	Mounting ([09.2002 - ] (0209- )1KDFTV)
12311-30061	Bracket, Engine Mounting, Front No.1 Rh	Mounting ([09.2002 - ] (0209- )1KDFTV)
12361-30050	Insulator, Engine Mounting, Front	Mounting ([09.2002 - ] (0209- )1KDFTV)
12361-30051	Insulator, Engine Mounting, Front	Mounting ([09.2002 - ] (0209- )1KDFTV)
12361-30141	Insulator, Engine Mounting, Front	Mounting ([09.2002 - ] (0209- )1KDFTV)
12361-30143	Insulator, Engine Mounting, Front	Mounting ([09.2002 - ] (0209- )1KDFTV)
12371-30060	Insulator, Engine Mounting, Rear No.1	Mounting ([09.2002 - ] (0209- )1KDFTV)
12371-30070	Insulator, Engine Mounting, Rear No.1	Mounting ([09.2002 - ] (0209- )1KDFTV)
12371-30080	Insulator, Engine Mounting, Rear No.1	Mounting ([09.2002 - ] (0209- )1KDFTV)
12371-30090	Insulator, Engine Mounting, Rear No.1	Mounting ([09.2002 - ] (0209- )1KDFTV)
12582-30020	Insulator, Cylinder Block, No.2	Mounting ([09.2002 - ] (0209- )1KDFTV)
90119-08B75	BOLT WWASHER	Mounting ([09.2002 - ] (0209- )1KDFTV)
90119-10811	Bolt, With Washer	Mounting ([09.2002 - ] (0209- )1KDFTV)
90179-10201	NUT	Mounting ([09.2002 - ] (0209- )1KDFTV)
90179-12051	Nut(For Front Stabilizer Link)	Mounting ([09.2002 - ] (0209- )1KDFTV)
90910-03001	BOLT, ENGINE MOUNT	Mounting ([09.2002 - ] (0209- )1KDFTV)
91552-01025	New Genuine Part	Mounting ([09.2002 - ] (0209- )1KDFTV)
