Search › Model › KDJ125

KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

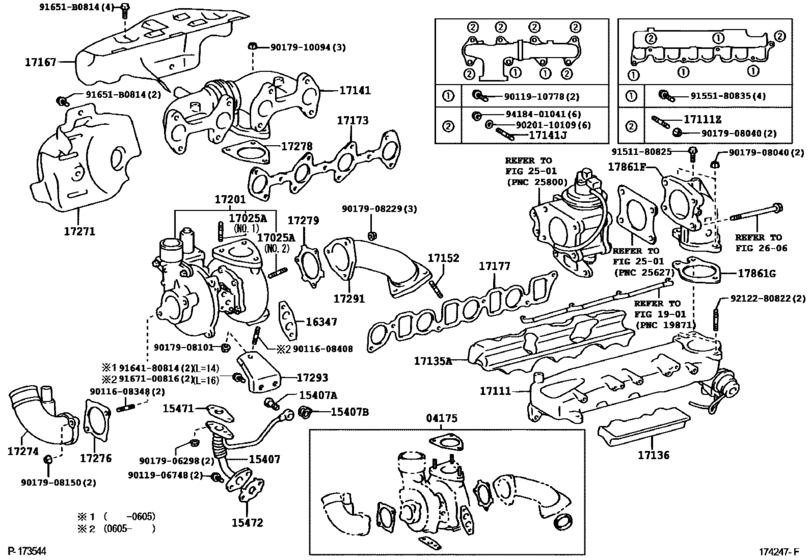

Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV) 71

#	OEM	Part name
4175	04175-30040	Gasket Kit, Turbocharger
4175	04175-30043	Gasket Kit, Turbocharger
4175	04175-30041	Gasket Kit, Turbocharger
15407	15407-30010	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30050	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30100	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-30010	Gasket, Turbo Oil Inlet
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-67010	Gasket, Turbo Oil Outlet, No.1
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
16347	16347-30010	Gasket, Water By-Pass
17025	90116-10175	Bolt, Stud(For Turbine Housing)
17025	90126-08009	Bolt, Stud(For Turbine Housing)
17111	17101-30011	Manifold, Intake
17111	17101-30040	Manifold, Intake
17111	92122-80822	Bolt, Stud(For Water Outlet)
17135	17135-30011	Insulator, Intake Manifold, No.1
17136	17136-30010	Insulator, Intake Manifold, No.2
17141	17104-30010	Manifold, Exhaust
17141	17141-30060	Manifold, Exhaust
17141	90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)
17152	90116-10088	Bolt, Stud(For Manifold To Exhaust Pipe)
17167	17167-30011	Insulator, Exhaust Manifold Heat, No.1
17167	17167-30020	Insulator, Exhaust Manifold Heat, No.1
17173	17173-30020	Gasket, Exhaust Manifold To Head
17173	17173-30030	Gasket, Exhaust Manifold To Head
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17201	17201-30100	Turbocharger Sub-Assy
17201	17201-30160	Turbocharger Sub-Assy
17201	17201-30161	Turbocharger Sub-Assy
17201	90116-08408	BOLT STUD
17201	17201-30101	Turbocharger Sub-Assy
17271	17271-30011	Insulator, Turbo, No.1
17271	17271-30030	Insulator, Turbo, No.1
17274	17274-30010	Elbow, Compressor Inlet
17274	17274-30040	Elbow, Compressor Inlet
17276	17276-67010	Gasket, Compressor Inlet
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-30030	Gasket, Turbine Outlet Elbow
17279	17279-30031	Gasket, Turbine Outlet Elbow
17291	17291-30010	Elbow, Turbine Outlet
17291	17291-30090	Elbow, Turbine Outlet
17291	17291-30091	Elbow, Turbine Outlet
17293	17293-30010	Stay, Turbocharger
17293	17293-30040	Stay, Turbocharger
17861	17861-30040	Connector, Intake Air
17861	17861-30090	Connector, Intake Air(For Gasket)
17861	26171-30013	Gasket, Intake Air Connector
17861	26171-30030	Gasket, Intake Air Connector
17861	26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR
91651	91651-B0814	Bolt with washer
91651	90119-A0109	New Genuine Part
9011608348	90116-08348	Bolt, Stud(For Water Outlet)
9011906748	90119-06748	BOLT WWASHER
9011910778	90119-10778	BOLT W-WASHER
9017906298	90179-06298	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908101	90179-08101	NUT
9017908150	90179-08150	NUT
9017908229	90179-08229	NUT
9017910094	90179-10094	NUT
9020110109	90201-10109	WASHER PLATE
9151180825	91511-80825	BOLTFLANGE
9155180835	91551-80835	Bolt (For Front Oil Pump Setting)
9164180814	91641-80814	BOLTWWASHER
9167100816	91671-00816	New Genuine Part
9418401041	94184-01041	Nut

OEM	Part name	Category
04175-30040	Gasket Kit, Turbocharger	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
04175-30041	Gasket Kit, Turbocharger	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
04175-30043	Gasket Kit, Turbocharger	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15407-30010	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15407-30050	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15407-30100	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15471-30010	Gasket, Turbo Oil Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
15472-67010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
16347-30010	Gasket, Water By-Pass	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17101-30011	Manifold, Intake	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17101-30040	Manifold, Intake	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17104-30010	Manifold, Exhaust	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17135-30011	Insulator, Intake Manifold, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17136-30010	Insulator, Intake Manifold, No.2	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17141-30060	Manifold, Exhaust	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17167-30011	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17167-30020	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17173-30020	Gasket, Exhaust Manifold To Head	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17173-30030	Gasket, Exhaust Manifold To Head	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17201-30100	Turbocharger Sub-Assy	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17201-30101	Turbocharger Sub-Assy	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17201-30160	Turbocharger Sub-Assy	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17201-30161	Turbocharger Sub-Assy	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17271-30011	Insulator, Turbo, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17271-30030	Insulator, Turbo, No.1	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17274-30010	Elbow, Compressor Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17274-30040	Elbow, Compressor Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17276-67010	Gasket, Compressor Inlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17279-30030	Gasket, Turbine Outlet Elbow	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17279-30031	Gasket, Turbine Outlet Elbow	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17291-30010	Elbow, Turbine Outlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17291-30090	Elbow, Turbine Outlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17291-30091	Elbow, Turbine Outlet	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17293-30010	Stay, Turbocharger	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17293-30040	Stay, Turbocharger	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17861-30040	Connector, Intake Air	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
17861-30090	Connector, Intake Air(For Gasket)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
26171-30013	Gasket, Intake Air Connector	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
26171-30030	Gasket, Intake Air Connector	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90116-08348	Bolt, Stud(For Water Outlet)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90116-08408	BOLT STUD	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90116-10088	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90116-10175	Bolt, Stud(For Turbine Housing)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90119-06748	BOLT WWASHER	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90119-10778	BOLT W-WASHER	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90119-A0109	New Genuine Part	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90126-08009	Bolt, Stud(For Turbine Housing)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-06298	NUT	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-08101	NUT	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-08150	NUT	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-08229	NUT	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90179-10094	NUT	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90201-10109	WASHER PLATE	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
91511-80825	BOLTFLANGE	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
91551-80835	Bolt (For Front Oil Pump Setting)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
91641-80814	BOLTWWASHER	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
91651-B0814	Bolt with washer	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
91671-00816	New Genuine Part	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
92122-80822	Bolt, Stud(For Water Outlet)	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
94184-01041	Nut	Manifold ([08.2004 - 08.2006] (0408-0608)1KDFTV)
