KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories
KDJ125 ×

← Back to categories

5,584 items

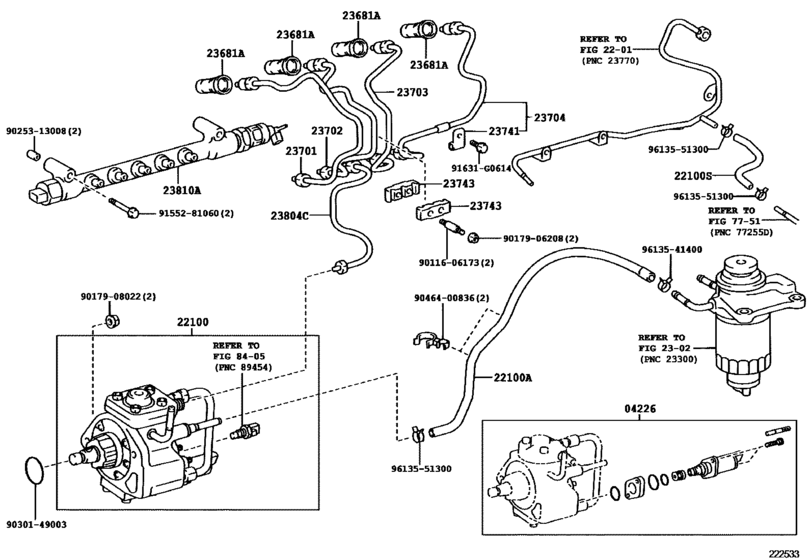

Injection Pump Assembly ([08.2004 - 08.2006] (0408-0608)1KDFTV) 34
#OEMPart name
4226 04226-30010 Valve Kit, Suction Control
22100 22100-30040 Pump Assy, Injection Or Supply
22100 22100-30090 Pump Assy, Injection Or Supply
22100 22100-30050 Pump Assy, Injection Or Supply
22100 23271-30120 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23271-30121 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23271-30230 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23273-30080 Hose, Fuel(For Injection Pump To Fuel Pipe)
22100 23273-30081 Hose, Fuel(For Injection Pump To Fuel Pipe)
23681 23681-30010 Seal, Nozzle Holder
23701 23701-30030 Pipe Sub-Assy, Injection, No.1
23701 23701-30060 Pipe Sub-Assy, Injection, No.1
23702 23702-30030 Pipe Sub-Assy, Injection, No.2
23702 23702-30060 Pipe Sub-Assy, Injection, No.2
23703 23703-30030 Pipe Sub-Assy, Injection, No.3
23703 23703-30060 Pipe Sub-Assy, Injection, No.3
23704 23704-39035 Pipe Sub-Assy, Injection, No.4
23704 23704-39055 Pipe Sub-Assy, Injection, No.4
23741 23741-30010 Clamp, Injection Pipe, No.1
23743 23743-30011 Clamp, Injection Pipe, No.3
23804 23804-30030 Pipe Sub-Assy, Fuel Inlet
23804 23804-30060 Pipe Sub-Assy, Fuel Inlet
23810 23810-30080 Rail Assy, Common
23810 23810-30100 Rail Assy, Common
91631 91631-G0614 BOT WWASHER
9011606173 90116-06173 BOLT STUD
9017906208 90179-06208 NUT
9017908022 90179-08022 NUT
9025313008 90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set)
9030149003 90301-49003 Gasket, Injection Pump
9046400836 90464-00836 Clamp, Fuel Hose, No.1
9155281060 91552-81060 Bolt, No.3(For Alternator)
9613541400 96135-41400 Clip(For Water By-Pass Hose No.1)
9613551300 96135-51300 Clamp, Hose
