KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

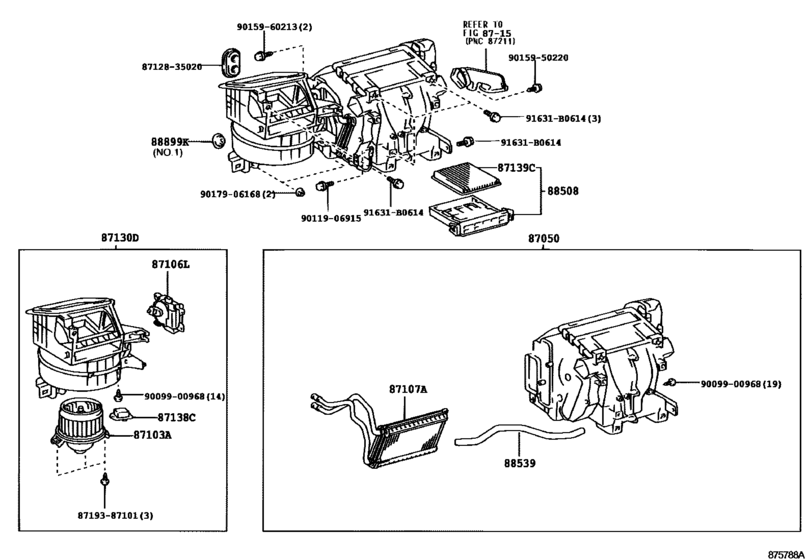

Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD) 47

#	OEM	Part name
87050	87050-60091	Radiator Assy, Air Conditioner
87050	87050-60101	Radiator Assy, Air Conditioner
87050	87050-60121	Radiator Assy, Air Conditioner
87050	87050-60131	Radiator Assy, Air Conditioner
87050	87050-60140	Radiator Assy, Air Conditioner
87050	87050-60150	Radiator Assy, Air Conditioner
87050	87050-60260	Radiator Assy, Air Conditioner
87050	87050-60270	Radiator Assy, Air Conditioner
87050	87050-60290	Radiator Assy, Air Conditioner
87050	87050-60300	Radiator Assy, Air Conditioner
87050	87050-60310	Radiator Assy, Air Conditioner
87050	87050-60340	Radiator Assy, Air Conditioner
87050	87050-60071	Radiator Assy, Air Conditioner
87050	87050-60111	Radiator Assy, Air Conditioner
87050	87050-60240	Radiator Assy, Air Conditioner
87050	87050-60280	Radiator Assy, Air Conditioner
87103	87103-35080	Motor Sub-Assy, Cooling Unit, W/fan
87103	87103-60360	Motor Sub-Assy, Cooling Unit, W/fan
87106	87106-35150	Servo Sub-Assy, Damper(For Blower)
87106	87106-60170	Servo Sub-Assy, Damper
87107	87107-35110	Unit Sub-Assy, Heater Radiator
87107	87107-60400	Unit Sub-Assy, Heater Radiator
87130	87130-35160	Blower Assy
87130	87130-35161	Blower Assy
87130	87130-60500	Blower Assy
87130	87130-60580	Blower Assy
87130	87130-60581	Blower Assy
87130	87130-60590	Blower Assy
87130	87130-60591	Blower Assy
87138	87138-60270	Resistor, Blower
87139	87139-32010	Filter, Clean Air
87139	87139-28010	Filter, Clean Air
87139	87139-47010	Filter, Clean Air
88508	88508-20120	Filter Sub-Assy, Clean Air
88508	88508-60011	Filter Sub-Assy, Clean Air
88539	88539-35040	Hose, Cooler Unit Drain, No.1
88899	88899-3A010	Grommet (For Drain Hose)
88899	88899-60250	Plate, Cover
88899	88899-60260	Plate, Cover
91631	91631-B0614	BOLT WWASHER
8712835020	87128-35020	Grommet, Heater
8719387101	87193-87101	SCREW TAPPING
9009900968	90099-00968	Screw(For Air Conditioner Unit)
9011906915	90119-06915	BOLT W-WASHER
9015950220	90159-50220	New Genuine Part
9015960213	90159-60213	New Genuine Part
9017906168	90179-06168	Nut & Washer Assy

OEM	Part name	Category
87050-60071	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60091	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60101	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60111	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60121	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60131	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60140	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60150	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60240	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60260	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60270	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60280	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60290	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60300	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60310	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87050-60340	Radiator Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87103-35080	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87103-60360	Motor Sub-Assy, Cooling Unit, W/fan	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87106-35150	Servo Sub-Assy, Damper(For Blower)	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87106-60170	Servo Sub-Assy, Damper	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87107-35110	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87107-60400	Unit Sub-Assy, Heater Radiator	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87128-35020	Grommet, Heater	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-35160	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-35161	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-60500	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-60580	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-60581	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-60590	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87130-60591	Blower Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87138-60270	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87139-28010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87139-32010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87139-47010	Filter, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
87193-87101	SCREW TAPPING	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88508-20120	Filter Sub-Assy, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88508-60011	Filter Sub-Assy, Clean Air	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88539-35040	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88899-3A010	Grommet (For Drain Hose)	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88899-60250	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
88899-60260	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
90099-00968	Screw(For Air Conditioner Unit)	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
90119-06915	BOLT W-WASHER	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
90159-50220	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
90159-60213	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
90179-06168	Nut & Washer Assy	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
91631-B0614	BOLT WWASHER	Heating & Air Conditioning - Cooler Unit ([09.2002 - ] FRONT,W/O(AIR CONDITIONER) (0209- )RHD)
