Search › Model › KDJ125

KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories
KDJ125 ×

← Back to categories

5,584 items

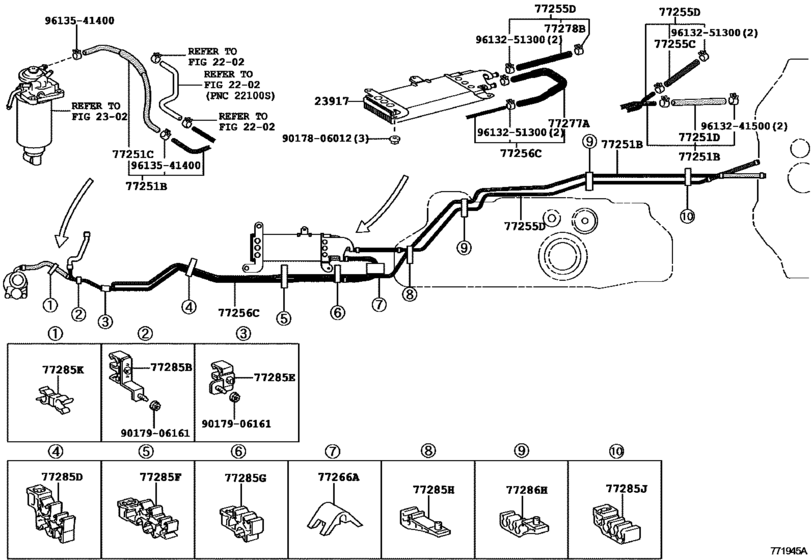

Fuel Tank & Tube ([08.2006 - ] FUEL TUBE (0608- )KDJ12#) 34
#OEMPart name
23917 23917-30040 Cooler, Fuel
23917 23917-30041 Cooler, Fuel
77251 77205-60A10 Tube, Fuel Main
77251 77205-60B70 Tube, Fuel Main
77251 77259-60700 Hose, Fuel, No.1(For Fuel Main Tube)
77251 95332-10018 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 95338-10018 Hose, Fuel, No.1 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77251 77259-60540 Hose, Fuel, No.2(For Fuel Main Tube)
77251 77259-60710 Hose, Fuel, No.2(For Fuel Main Tube) - FUEL, NO.1(FOR FUEL MAIN TUBE)
77255 95333-08020 Hose, Lpg Injector
77255 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77255 95337-08034 Hose, Fuel, No.2
77255 77207-60110 Tube, Fuel Return
77255 77207-60190 Tube, Fuel Return
77256 77207-60250 Tube, Fuel Return, No.2
77256 77255-6A030 Tube, Fuel Return, No.2
77266 77266-60030 Protector, Fuel Tube, No.1
77277 77259-60560 Hose, Fuel - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77278 77259-71060 Hose, Fuel, No.1 - FUEL, NO.2 (FOR RETURN TUBE, NO.2)
77285 77285-35650 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35670 Clamp, Fuel Tube, No.1
77285 77285-35660 Clamp, Fuel Tube W/grommet, No.1
77285 77285-35680 Clamp, Fuel Tube, No.1
77285 77285-35690 Clamp, Fuel Tube, No.1
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-60480 Clamp, Fuel Tube, No.1
77285 77285-60490 Clamp, Fuel Tube, No.1
77285 77285-60580 Clamp, Fuel Tube, No.1
77286 77285-60570 Clamp, Fuel Tube, No.3
9017806012 90178-06012 NUT FLANGE
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613541400 96135-41400 Clip(For Water By-Pass Hose No.1)
