KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

← Back to categories

5,584 items

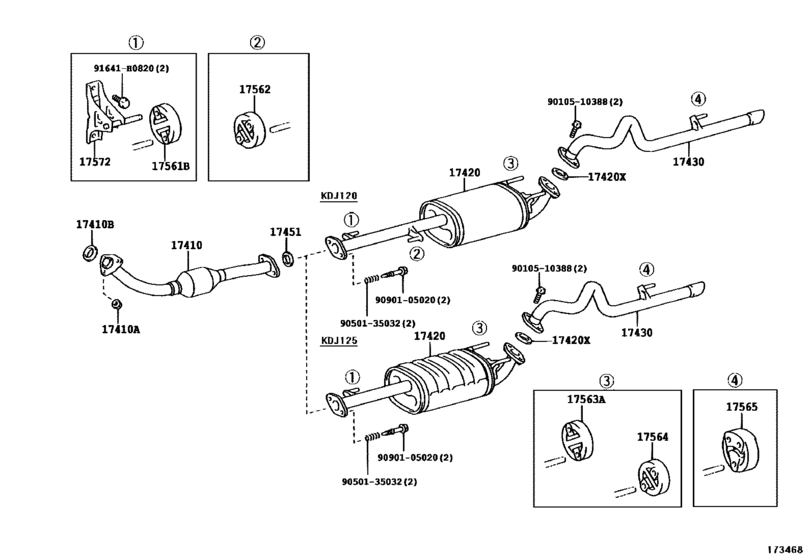

Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV) 18

#	OEM	Part name
17410	17410-30100	Pipe Assy, Exhaust, Front
17410	17410-30180	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06090	Gasket, Exhaust Pipe
17420	17420-30070	Pipe Assy, Exhaust, Center
17420	90917-06072	Gasket, Exhaust Pipe
17430	17430-30040	Pipe Assy, Exhaust, Tail
17430	17430-30041	Pipe Assy, Exhaust, Tail
17451	17451-74051	Gasket, Exhaust Pipe
17561	17565-22040	Support, Exhaust Pipe, No.1
17561	17565-46040	Support, Exhaust Pipe, No.1
17565	17565-74320	Support, Exhaust Pipe, No.1
17572	17571-50140	Bracket, Exhaust Pipe Support, No.1
91641	91641-H0820	Bolt
9010510388	90105-10388	BOLT
9050135032	90501-35032	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-30100	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17410-30180	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17420-30070	Pipe Assy, Exhaust, Center	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17430-30040	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17430-30041	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17451-74051	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17565-46040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17565-74320	Support, Exhaust Pipe, No.1	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
17571-50140	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90105-10388	BOLT	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90501-35032	SPRING COMPRESSION	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90917-06072	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)
91641-H0820	Bolt	Exhaust Pipe ([09.2002 - ] (0209- )1KDFTV)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 246
Collected: 2026-08-02
