Search › Model › KDJ125

KDJ125

Toyota LAND-CRUISER-PRADO · 2002 · 5,584 parts · 246 categories

5,584 items

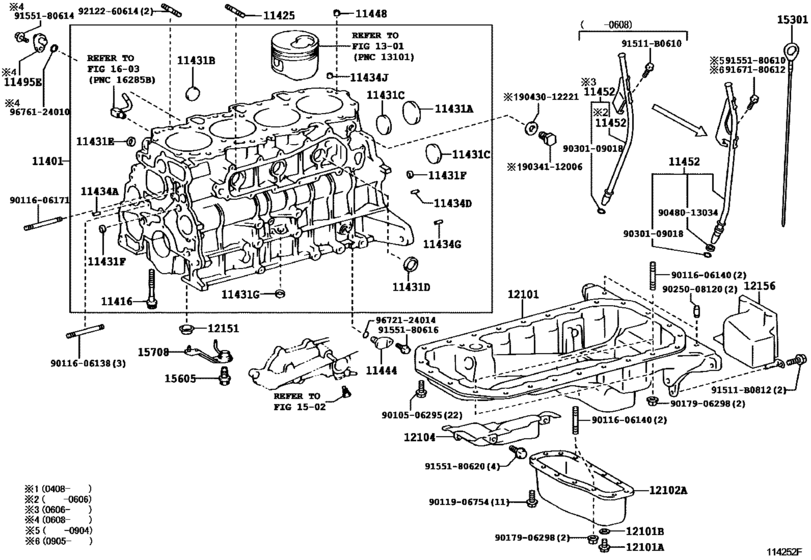

Cylinder Block ([09.2002 - ] (0209- )1KDFTV) 58

#	OEM	Part name
11401	11401-39735	Block Sub-Assy, Cylinder
11401	11401-80060	Block Sub-Assy, Cylinder
11401	11401-39875	Block Sub-Assy, Cylinder
11401	11401-39876	Block Sub-Assy, Cylinder
11401	11401-39877	Block Sub-Assy, Cylinder
11401	11401-39878	Block Sub-Assy, Cylinder
11416	90910-02113	Bolt(For Crankshaft Bearing Cap Set)
11425	90116-06171	Bolt, Stud(For Oil Filter)
11431	96411-64500	Plug, Tight
11431	96411-63500	Plug, Tight
11431	96411-64000	Plug, Tight, No.2
11431	90331-35004	Plug, Tight, No.4(For Cylinder Block)
11431	96411-62000	Plug, Tight
11431	96411-61800	Tight Plug(For Oil Seal Retainer)
11431	90331-14006	Plug, Tight, No.1
11434	90250-08120	Pin, Straight, No.1
11434	90250-06068	Pin, Straight
11434	90250-10192	Pin, Straight(For Timing Gear Cover Set)
11434	90253-15016	Pin, Straight(For End Plate)
11444	11444-67020	Plug, Hole
11448	11448-67010	Orifice, Cylinder Block Oil
11452	11452-30010	Guide, Oil Level Gage
11452	11452-30080	Guide, Oil Level Gage
11495	11495-30010	Plug, Plate
11495	16278-30010	Plug, Plate
12101	12101-30080	Pan Sub-Assy, Oil
12101	12101-30081	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12102	12102-30020	Pan Sub-Assy, Oil, No.2
12104	12104-30010	Cover Sub-Assy, Oil Pan, No.1
12151	12151-30020	Gasket, Oil Pan
12156	12156-30010	Insulator, Oil Pan
12156	12156-30020	Insulator, Oil Pan
15301	15301-67031	Gage Sub-Assy, Oil Level
15605	15605-17030	Valve Sub-Assy, Oil Check
15708	15708-30011	Nozzle Sub-Assy, Oil, No.1
91511	91511-B0610	BOLT FLANGE
91511	91511-B0812	BOLT FLANGE
9010506295	90105-06295	New Genuine Part
9011606138	90116-06138	New Genuine Part
9011606140	90116-06140	Bolt, Stud(For Oil Strainer)
9011906754	90119-06754	BOLT WWASHER
9017906298	90179-06298	NUT
9030109018	90301-09018	Ring, O(For Timing Gear Case, Lower)
9034112006	90341-12006	Plug(For Water Outlet)
9043012221	90430-12221	Gasket
9048013034	90480-13034	GROMMET
9155180610	91551-80610	BOLT FLANGE
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155180616	91551-80616	BOLT FLANGE
9155180620	91551-80620	Bolt
9167180612	91671-80612	Bolt
9212260614	92122-60614	Bolt, Stud(For Oil Strainer)
9672124014	96721-24014	Ring, O
9672124014	96743-24014	Ring, O
9676124010	96761-24010	Ring, O(For Water By-Pass No.2 Pipe)

OEM	Part name	Category
11401-39735	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11401-39875	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11401-39876	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11401-39877	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11401-39878	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11401-80060	Block Sub-Assy, Cylinder	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11444-67020	Plug, Hole	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11448-67010	Orifice, Cylinder Block Oil	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11452-30010	Guide, Oil Level Gage	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11452-30080	Guide, Oil Level Gage	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
11495-30010	Plug, Plate	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12101-30080	Pan Sub-Assy, Oil	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12101-30081	Pan Sub-Assy, Oil	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12102-30020	Pan Sub-Assy, Oil, No.2	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12104-30010	Cover Sub-Assy, Oil Pan, No.1	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12151-30020	Gasket, Oil Pan	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12156-30010	Insulator, Oil Pan	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
12156-30020	Insulator, Oil Pan	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
15301-67031	Gage Sub-Assy, Oil Level	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
15605-17030	Valve Sub-Assy, Oil Check	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
15708-30011	Nozzle Sub-Assy, Oil, No.1	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
16278-30010	Plug, Plate	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90105-06295	New Genuine Part	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90116-06138	New Genuine Part	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90116-06140	Bolt, Stud(For Oil Strainer)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90116-06171	Bolt, Stud(For Oil Filter)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90119-06754	BOLT WWASHER	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90179-06298	NUT	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90250-06068	Pin, Straight	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90250-08120	Pin, Straight, No.1	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90253-15016	Pin, Straight(For End Plate)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90301-09018	Ring, O(For Timing Gear Case, Lower)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90331-14006	Plug, Tight, No.1	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90331-35004	Plug, Tight, No.4(For Cylinder Block)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90341-12006	Plug(For Water Outlet)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90430-12221	Gasket	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90480-13034	GROMMET	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
90910-02113	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91511-B0610	BOLT FLANGE	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91511-B0812	BOLT FLANGE	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91551-80610	BOLT FLANGE	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91551-80616	BOLT FLANGE	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91551-80620	Bolt	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
91671-80612	Bolt	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
92122-60614	Bolt, Stud(For Oil Strainer)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96411-61800	Tight Plug(For Oil Seal Retainer)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96411-62000	Plug, Tight	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96411-63500	Plug, Tight	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96411-64000	Plug, Tight, No.2	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96411-64500	Plug, Tight	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96721-24014	Ring, O	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96743-24014	Ring, O	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
96761-24010	Ring, O(For Water By-Pass No.2 Pipe)	Cylinder Block ([09.2002 - ] (0209- )1KDFTV)
