Search › Model › KDJ125
KDJ125

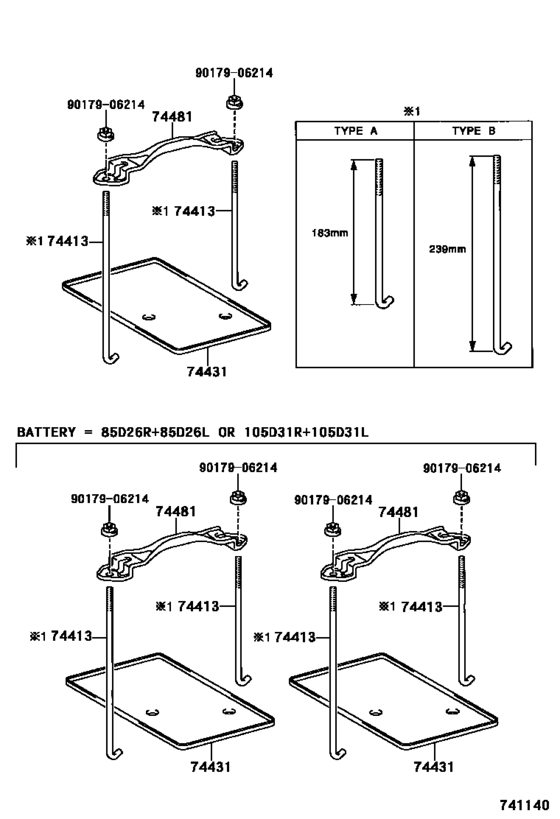

Battery Carrier ([09.2002 - ] (0209- )) 10
| # | OEM | Part name |
|---|---|---|
| 74413 | 74451-30090 | Bolt, Battery Clamp |
| 74413 | 74451-35080 | Bolt, Battery Clamp |
| 74413 | 74451-35090 | Bolt, Battery Clamp |
| 74413 | 74451-52070 | Bolt, Battery Clamp |
| 74413 | 74451-52071 | Bolt, Battery Clamp |
| 74431 | 74431-14030 | Carrier, Battery |
| 74431 | 74431-52040 | Tray, Battery |
| 74431 | 74431-35040 | Tray, Battery |
| 74481 | 74481-26020 | Clamp, Battery Hold Down |
| 9017906214 | 90179-06214 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 74431-14030 | Carrier, Battery | Battery Carrier ([09.2002 - ] (0209- )) |
| 74431-35040 | Tray, Battery | Battery Carrier ([09.2002 - ] (0209- )) |
| 74431-52040 | Tray, Battery | Battery Carrier ([09.2002 - ] (0209- )) |
| 74451-30090 | Bolt, Battery Clamp | Battery Carrier ([09.2002 - ] (0209- )) |
| 74451-35080 | Bolt, Battery Clamp | Battery Carrier ([09.2002 - ] (0209- )) |
| 74451-35090 | Bolt, Battery Clamp | Battery Carrier ([09.2002 - ] (0209- )) |
| 74451-52070 | Bolt, Battery Clamp | Battery Carrier ([09.2002 - ] (0209- )) |
| 74451-52071 | Bolt, Battery Clamp | Battery Carrier ([09.2002 - ] (0209- )) |
| 74481-26020 | Clamp, Battery Hold Down | Battery Carrier ([09.2002 - ] (0209- )) |
| 90179-06214 | NUT | Battery Carrier ([09.2002 - ] (0209- )) |
