Search › Model › KDJ120

KDJ120

Toyota LAND-CRUISER-PRADO · 2002 · 5,921 parts · 249 categories

5,921 items

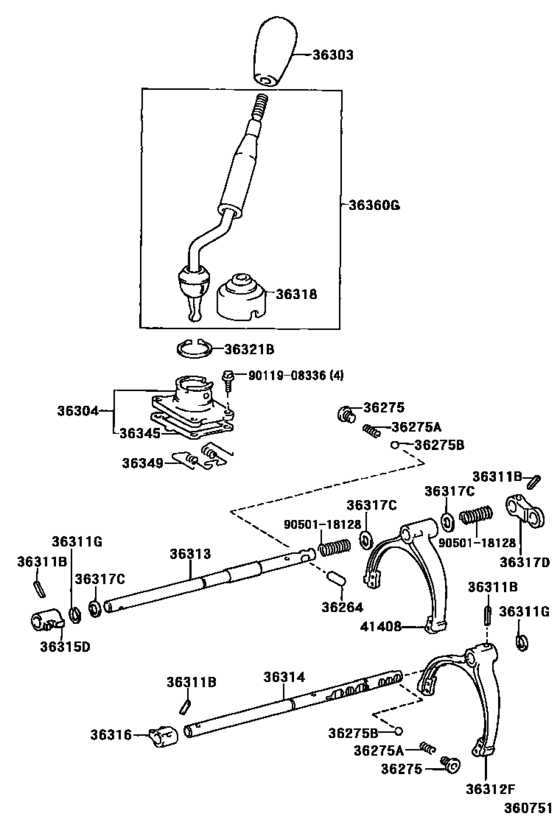

Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC) 33

#	OEM	Part name
36264	90250-10020	Pin Or Roller, Shift Inter-Lock
36275	90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)
36275	90501-16116	Spring, Compression (For Shift Detent Ball)
36275	90360-10003	Ball(For Transmission Oil Pump Cover)
36303	36303-60290-C0	Knob Sub-Assy, Shift Lever
36303	36303-60300-C0	Knob Sub-Assy, Shift Lever
36303	36303-60300-B0	Knob Sub-Assy, Shift Lever
36303	36303-60310-C0	Knob Sub-Assy, Shift Lever
36304	36304-60040	Retainer Sub-Assy, Transfer Control Shift Lever
36311	90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)
36311	90520-13002	Ring, Shaft Snap (For Shift Fork Shaft)
36312	36302-60190	Fork, Transfer Gear Shift, No.2
36313	36313-60150	Shaft, Transfer Front Drive Shift
36313	36313-71020	Shaft, Transfer Front Drive Shift
36314	36314-60130	Shaft, Transfer High And Low Shift Fork
36314	36314-60110	Shaft, Transfer High And Low Shift Fork
36314	36314-71020	Shaft, Transfer High And Low Shift Fork
36315	36315-60030	Head, Transfer Gear Shift, No.1
36316	36316-60010	Head, Transfer Gear Shift, No.2
36316	36316-35040	Head, Transfer Gear Shift, No.2
36317	36317-35020	Stopper, Transfer Shift Shaft
36317	36317-60020	Stopper, No.2, Transfer Shift Shaft
36318	33555-35190	Boot, Transfer Front Drive Shift
36321	90521-49003	Ring, Snap (For Shift Lever Spring Sheet)
36345	36345-35040	Gasket, Transfer Control Shift Lever Retainer
36349	36349-60020	Spring, Transfer Select Return
36360	36360-60A00	Lever Assy, Transfer High & Low Shift
36360	36360-60770	Lever Assy, Transfer High & Low Shift
36360	36360-6A040	Lever Assy, Transfer High & Low Shift
41408	41408-60030	Fork Sub-Assy, Center Differential Lock
41408	41408-60021	Fork Sub-Assy, Center Differential Lock
9011908336	90119-08336	BOLT
9050118128	90501-18128	Spring, Compresion (For Shift Fork)

OEM	Part name	Category
33555-35190	Boot, Transfer Front Drive Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36302-60190	Fork, Transfer Gear Shift, No.2	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36303-60290-C0	Knob Sub-Assy, Shift Lever	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36303-60300-B0	Knob Sub-Assy, Shift Lever	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36303-60300-C0	Knob Sub-Assy, Shift Lever	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36303-60310-C0	Knob Sub-Assy, Shift Lever	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36304-60040	Retainer Sub-Assy, Transfer Control Shift Lever	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36313-60150	Shaft, Transfer Front Drive Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36313-71020	Shaft, Transfer Front Drive Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36314-60110	Shaft, Transfer High And Low Shift Fork	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36314-60130	Shaft, Transfer High And Low Shift Fork	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36314-71020	Shaft, Transfer High And Low Shift Fork	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36315-60030	Head, Transfer Gear Shift, No.1	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36316-35040	Head, Transfer Gear Shift, No.2	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36316-60010	Head, Transfer Gear Shift, No.2	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36317-35020	Stopper, Transfer Shift Shaft	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36317-60020	Stopper, No.2, Transfer Shift Shaft	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36345-35040	Gasket, Transfer Control Shift Lever Retainer	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36349-60020	Spring, Transfer Select Return	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36360-60770	Lever Assy, Transfer High & Low Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36360-60A00	Lever Assy, Transfer High & Low Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
36360-6A040	Lever Assy, Transfer High & Low Shift	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
41408-60021	Fork Sub-Assy, Center Differential Lock	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
41408-60030	Fork Sub-Assy, Center Differential Lock	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90119-08336	BOLT	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90250-10020	Pin Or Roller, Shift Inter-Lock	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90254-05001	Pin, Slotted Spring(For Shift Lever Shaft Set)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90360-10003	Ball(For Transmission Oil Pump Cover)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90501-16116	Spring, Compression (For Shift Detent Ball)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90501-18128	Spring, Compresion (For Shift Fork)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90520-13002	Ring, Shaft Snap (For Shift Fork Shaft)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
90521-49003	Ring, Snap (For Shift Lever Spring Sheet)	Transfer Lever & Shift Rod ([09.2002 - ] (0209- )KDJ120,KZJ120 ; (0209- )RZJ12#,TRJ 12#..4FC)
