Search › Model › KDJ120
KDJ120

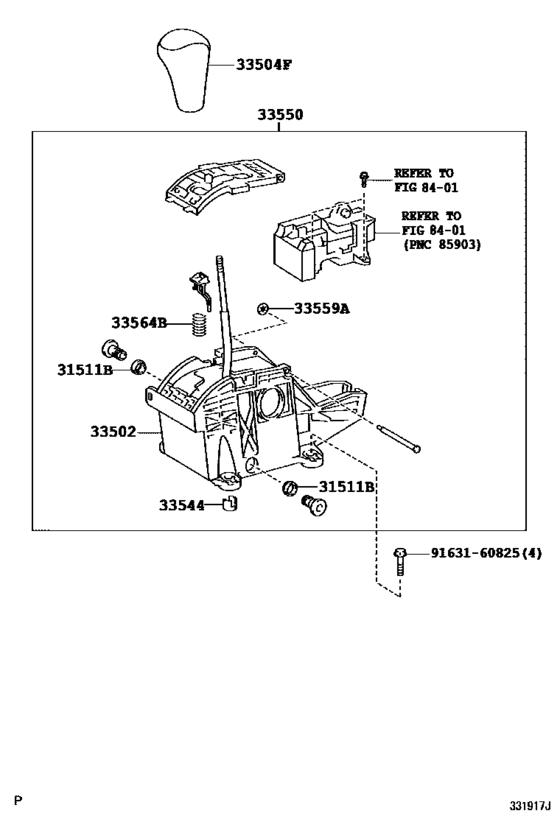

Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) 8
| # | OEM | Part name |
|---|---|---|
| 31511 | 90385-13010 | Bush(For Control Shaft) |
| 33502 | 33502-60350 | Plate Sub-Assy, Shift Lever |
| 33504 | 33504-60150-C0 | Knob Sub-Assy, Shift Lever |
| 33544 | 33544-33010 | Collar (For Floor Shift Setting) |
| 33550 | 33550-60740 | Floor Shift Assy, Transmission |
| 33559 | 33559-50010 | Nut, Shift Lever, No.1 |
| 33564 | 90501-06080 | Spring, Compression (For Shift Lock Release Link) |
| 9163160825 | 91631-60825 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 33502-60350 | Plate Sub-Assy, Shift Lever | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 33504-60150-C0 | Knob Sub-Assy, Shift Lever | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 33544-33010 | Collar (For Floor Shift Setting) | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 33550-60740 | Floor Shift Assy, Transmission | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 33559-50010 | Nut, Shift Lever, No.1 | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 90385-13010 | Bush(For Control Shaft) | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 90501-06080 | Spring, Compression (For Shift Lock Release Link) | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
| 91631-60825 | BOLT WWASHER | Shift Lever & Retainer ([09.2002 - ] (0209- )ATM..ARL) |
