Toyota LAND-CRUISER-PRADO · 2002 · 5,921 parts · 249 categories
KDJ120 ×

← Back to categories

5,921 items

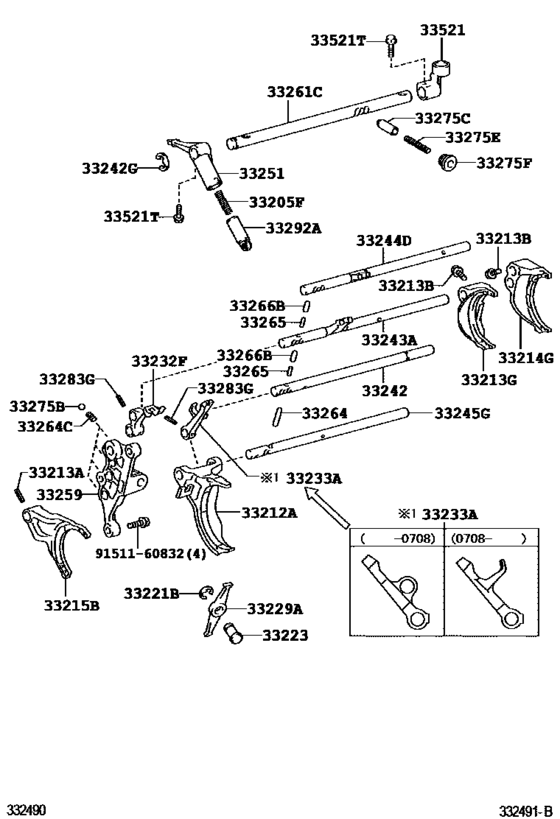

Gear Shift Fork & Lever Shaft (Mtm) ([08.2006 - ] RA61 (0608- )KDJ120..6F) 40
#OEMPart name
33205 90501-22066 Spring, Compression(For Select Return) - COMPRESSION, NO.1 (FOR SELECT RETURN)
33212 33210-35010 Fork, Gear Shift, No.1
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90105-06077 Bolt(For Shift Fork Set)
33213 33220-35010 Fork, Gear Shift, No.2
33214 33230-35020 Fork, Gear Shift, No.3
33215 33240-35010 Fork, Gear Shift, No.4
33215 33240-35012 Fork, Gear Shift, No.4
33215 33240-35011 Fork, Gear Shift, No.4
33221 96160-01200 Ring, E(For Clutch Release Cable)
33223 33223-35040 Pivot, Shift Arm
33229 33222-35010 Arm, Shift - RELEASE, NO.1
33232 33232-35022 Head, Gear Shift, No.1
33232 33232-35023 Head, Gear Shift, No.1
33233 33233-35031 Head, Gear Shift, No.2
33233 33233-35032 Head, Gear Shift, No.2
33233 33243-35092 Shaft, Gear Shift Fork, No.2
33242 33242-35080 Shaft, Gear Shift Fork, No.1
33242 96160-01500 Ring, E(For Reverse Shift Arm)
33243 33243-35091 Shaft, Gear Shift Fork, No.2
33244 33244-35101 Shaft, Gear Shift Fork, No.3
33245 33245-35100 Shaft, Gear Shift Fork, No.4
33245 33245-35101 Shaft, Gear Shift Fork, No.4
33251 33251-35171 Lever, Shift & Select
33259 33259-35010 Bracket, Shift Interlock
33261 33261-60110 Shaft, Shift & Select Lever
33264 90250-06036 Pin, Or Ball, Shift Inter Lock, No.1
33264 90501-12212 Ball (For Shift Inter Lock) - COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33265 33265-22010 Pin, Shift Inter Lock, No.2
33266 33266-22010 Pin, Shift Inter Lock, No.2
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33275 33292-20010 Pin, Lock Ball - LOCK BALL NO.2
33275 33292-53010 Pin, Lock Ball
33275 90501-12211 Spring, Compression (For Shift Detent Ball)
33275 90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33283 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33292 33292-35010 Pin, Lock Ball
33521 33521-60200 Housing, Shift Lever
33521 90109-08305 Pin Or Bolt (For Shift Lever Housing)
9151160832 91511-60832 Bolt, Flange(For Select Stopper Block)
