KDJ120

Toyota LAND-CRUISER-PRADO · 2002 · 5,921 parts · 249 categories
KDJ120 ×

← Back to categories

5,921 items

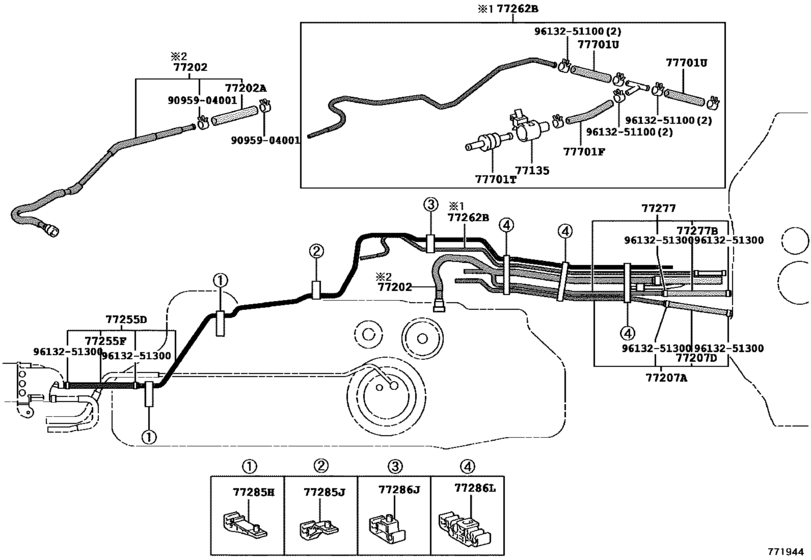

Fuel Tank & Tube ([08.2006 - ] FUEL TUBE,W(FUEL SUB TANK) (0608- )KDJ120) 23
#OEMPart name
77135 77135-42010 Bracket, Check Valve
77202 77012-60120 Tube Sub-Assy, Breather
77202 95313-13020 Hose, Fuel, No.1 (For Breather Tube)
77207 77207-60120 Tube Sub-Assy, Fuel Return
77207 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77255 77207-60180 Tube, Fuel Return
77255 77259-71060 Hose, Fuel, No.1 - FUEL, NO.2 (FOR RETURN TUBE, NO.2)
77255 95333-08020 Hose, Lpg Injector
77255 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77262 77019-60140 Tube, Fuel Tank To Canister, No.2
77277 77208-60140 Tube, Fuel Return, No.1
77277 95334-08020 Hose, Fuel, No.2(For Fuel Main Tube) - FUEL, NO.2(FOR RETURN TUBE, NO.1)
77285 77285-35700 Clamp, Fuel Tube, No.1
77285 77285-35710 Clamp, Fuel Tube, No.1
77286 77285-35610 Clamp, Fuel Tube, No.1
77286 77285-35620 Clamp, Fuel Tube, No.1
77701 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77701 95337-06020 Hose, Differential Pressure Control
77701 90917-10092 Valve, Check (For Sub-Fuel Tank)
77701 95333-06010 Hose, Fuel
9095904001 90959-04001 Clip, Fuel Hose
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
